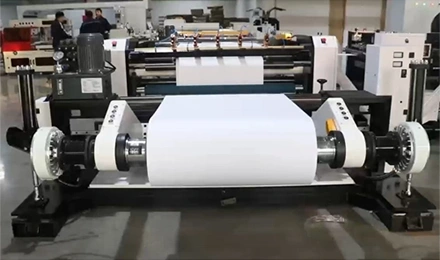

Hobbing Die - Cutting Machine

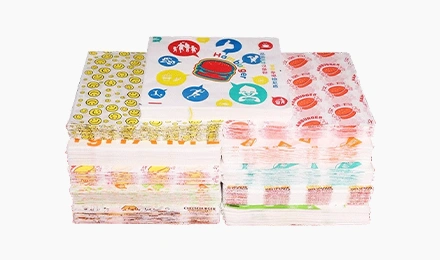

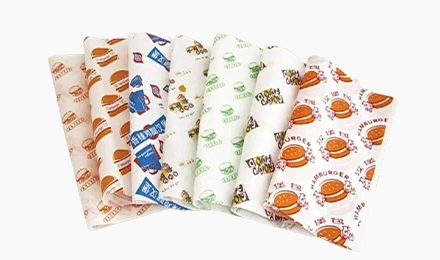

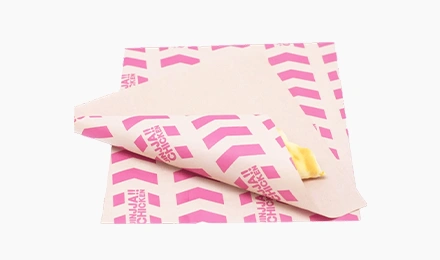

High speed sheeting machine for sandwich wrapping paper, tray paper and other low gsm paper. 2 rolls structure is available.

Primary Materials :

Please Choose

Paper
Hamburger Composite

Cutting parameter :

Enter Your Needs

Inquire Now

Machine Introduction

This sheeting machine is the best choice for the majority of food packaging paper production.

It adopts the one-time forming technology of longitudinal cutting and positioning cross-cutting, and ensures high-speed production, avoids multi-process waste, and greatly improves production efficiency; double spiral hob shearing synchronous cutting, high paper cutting efficiency, knife load 28og/m', low noise during paper cutting, and long tool life: the motion controller adopts Inovance bus-type service system, and the high-order curve smooth processing of the motion process realizes the seamless transition of non-uniform motion during high-speed cutting, energy saving and low impact; the collection department is equipped with an automatic step-by-step stacking conveyor belt, which can accurately count the finished products and collect them in single stacking, which is convenient for the subsequent packaging work.

Utility Model Patent No.: Z1202322006660.8

Advantages and Characteristics

This machine adopts servo motor for fixed-length cutting. Electronic and pneumatic control, simple operation, high cutting accuracy, low noise and stable operation. The whole machine adopts servo motor and frequency converter for speed regulation to ensure stable mechanical operation. Intelligent functions include automatic counting, emergency alarm, shutdown, automatic tension adjustment, and deviation correction system

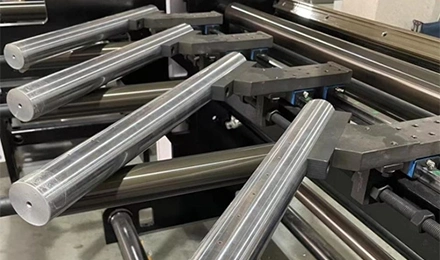

It adopts an air-expanding shaft or a shaft-less discharge rack, which is simple to operate and can flexibly adapt to a variety of paper tube cores of different sizes

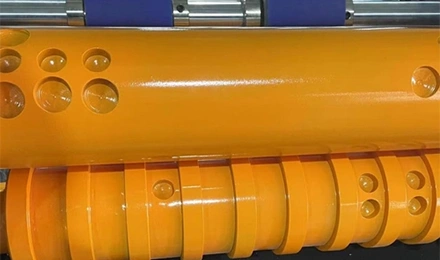

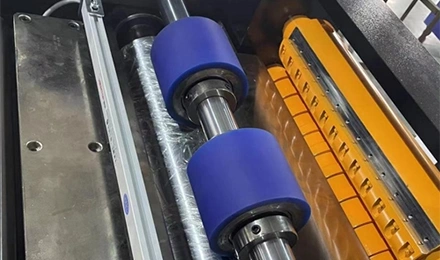

Pneumatic round knives slitting, dual rotary blade sheeting, high speed and high cutting accuracy.

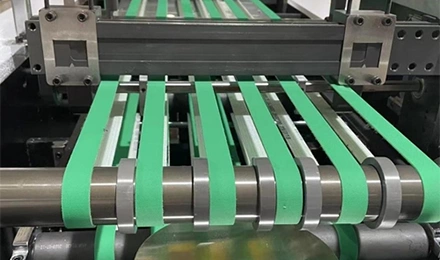

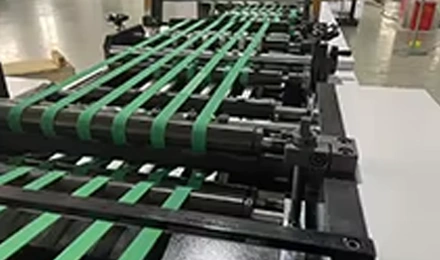

Conveyor belt delivery and neat stacking.
Servo motor for fixed-length high-precision cutting, with an accuracy of up to 0.2mm.
Use motion controller and HMI operation .

Specifications Parameters

Model	GDHQ-450
Max. unwinding width	1600mm
Max. unwinding diameter	1400mm
Paper thickness	20~65gsm
Cutting length range	250~400mm
Cutting width range	200~400mm
Max. mechanical speed	200-450 cuts per minute
Total power	380v 50hz 28kw
Dimension and weight	14000×3800×2000mm, 7000kg
