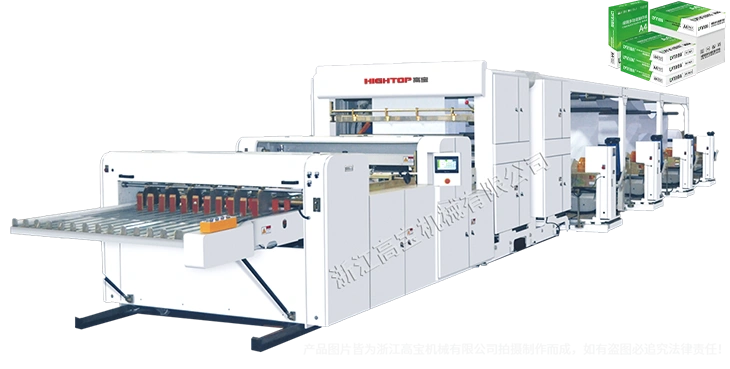

Equipped with a Panasonic PLC from Japan for precise control, it produces smooth, burr-free cuts with tolerances suitable for the cigarette packaging industry; it operates fully automatically, with automatic shutdown and automatic calculation functions, making it ideal for high-volume, continuous production scenarios.

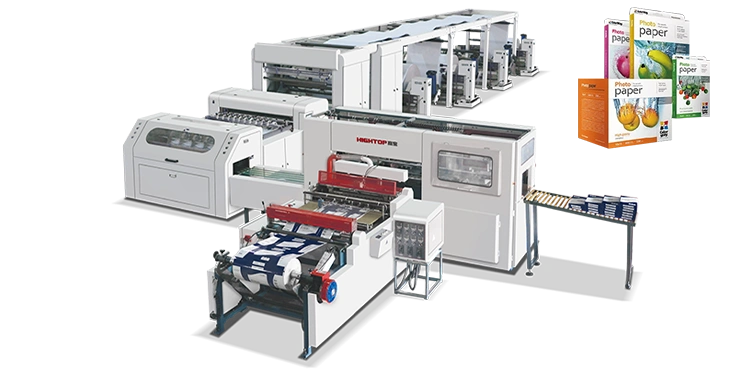

High-precision Sheeting Machine series from Hightop offers high-speed, accurate sheeting for flexible packaging films, paper, non-woven and other roll materials, with minimal waste rate for stable mid-to-large production.
It can process thin- to medium-thickness roll materials such as BOPP, PET, CPP, aluminum foil, coated paper, kraft paper, and non-woven fabric. The machine accommodates material widths ranging from 100 mm to 2,000 mm, meeting customized slitting needs across a variety of applications.
Sheeting machines can process a wide range of materials, including paper, plastic film, non-woven fabrics, aluminum foil, textiles, and more. The choice of machine and cutting method depends on the material's properties and intended application.
Many modern sheeting machines are automated to improve accuracy, efficiency, and productivity. Advanced models come with computerized controls, sensors, and user-friendly interfaces, allowing operators to input parameters and monitor the process.
Using a sheeting machine offers benefits such as increased efficiency in cutting processes, precise customization of sheet sizes, consistent quality, reduced labor requirements, minimized material waste, and the ability to handle a variety of materials for different industries.
A sheeting machine is a versatile industrial tool used to accurately cut and convert large rolls of materials into uniform sheets of predetermined dimensions. These machines find application across diverse industries, including packaging, printing, textiles, and manufacturing.

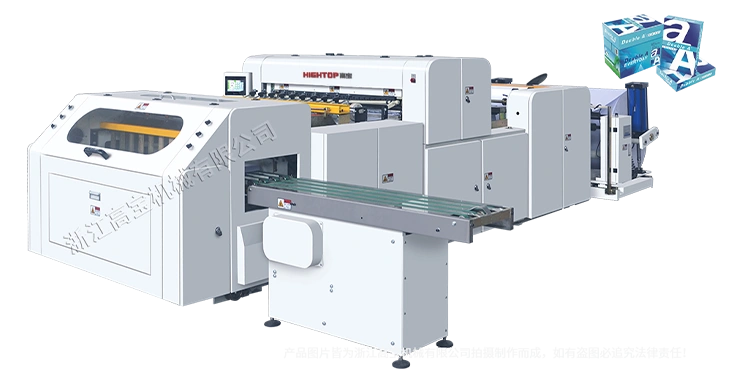

| FEATURE/PARAMETER | PAPER SHEETING MACHINE | PLASTIC FILM SHEETING MACHINE | NON WOVEN SHEETING MACHINE | ALUMINUM FOIL SHEETING MACHINE |
|---|---|---|---|---|
| CORE POSITIONING | Precision fixed-length sheeting for printed & packaging paper with neat, burr-free cutting surface | Stretch-free cutting for PET/PE/BOPP films, ideal for label and packaging sheet production | Dust-free & low-tension cutting for finished nonwoven sheets such as wiping cloths and mask fabrics | Burr-free cutting without surface scratches for food-grade and thermal insulation aluminum foil sheets |
| MAX. PRODUCTION SPEED | 300 m/min | 250 m/min | 180 m/min | 200 m/min |
| CUTTING ACCURACY | ±0.15 mm | ±0.15 mm | ±0.20 mm | ±0.15 mm |
| MIN. SHEET WIDTH | 100 mm | 80 mm | 100 mm | 120 mm |
| MAX. UNWIND DIAMETER | Φ1500 mm | Φ1300 mm | Φ1400 mm | Φ1400 mm |
| CORE TECHNOLOGY | Servo fixed-length cutting system, automatic edge correction, negative-pressure paper conveying, flying knife cutting | Static elimination equipment, film flattening mechanism, buffered flying knife cutting | Ultrasonic edge detection, negative-pressure feeding, low-temperature anti-drawing cutting, dust removal air duct | CCD edge detection, dust extraction system, scratch-proof rollers, cemented carbide cutter assembly |
| STANDARD SMART FEATURES | PLC + HMI touch screen, cutting length memory, auto stop on material breakage, finished product stacking counting | PLC touch control, automatic length compensation, data communication interface, batch parameter storage | Recipe storage function, automatic sheet counting, closed-loop edge position control, cleanroom adaptive program | PLC constant speed control, precise length measurement, fault self-diagnosis, optional remote monitoring function |
