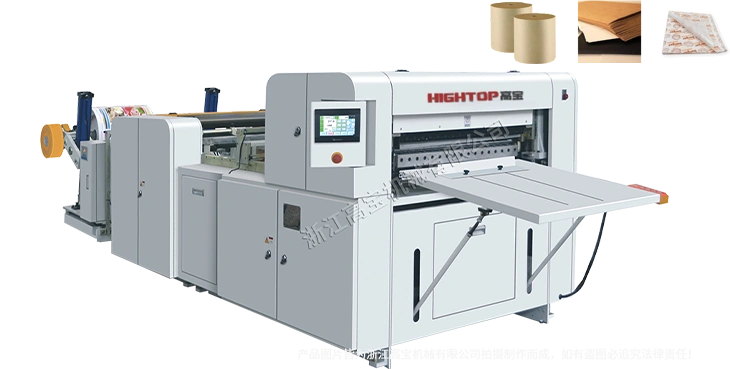

Machine Introduction

This machine uses a servo motor PLC to control fixed-length cutting. The transmission adopts a pneumatic synchronous belt and brake motor synchronous control. The motor has variable-frequency speed regulation, automatic counting, auto-alarm stop, automatic control of magnetic powder tension, and can be cut in multiple sections longitudinally. The waste edge is automatically removed by a fan.





Advantages and Characteristics
  • This sheeting machine adopts servo motor to control the length of cutting,
  • It has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise.
  • Frequency inverter control motor speed with stable running, automatic counting, alarm and automatic-stop,
  • Full automatic tension control.

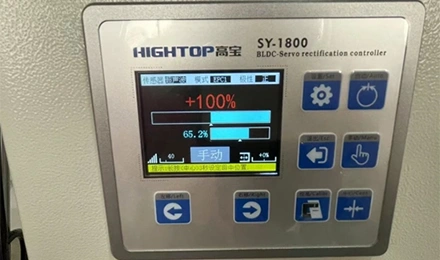

  • Web edge position automatic correct control by system.
  • Waste edge is removed by blower automatically.
Specifications Parameters

This machine is suitable for cutting various large-roll nonwoven fabric materials.

Model HQJ-1100D HQJ-1400D
Max. width of master roll 1100mm 1400mm
Max. diameter of master roll Φ1400mm Φ1400mm
Cutting parameter Length: 20-800mm,  Precision: ±0.2mm,  Speed: ≤20-200times/min
Total power 6.5 kw 9kw
Dimension and weight 5450×1900×1400mm, 3200kg 5050×2200×1400mm, 3400kg
Equipment Details
