Machine Introduction



Advantages and Characteristics
  • This sheeting machine adopts servo motor to control the length of cutting,
  • It has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise.
  • Frequency inverter control motor speed with stable running, automatic counting, alarm and automatic-stop,

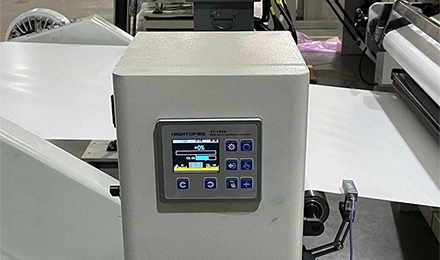

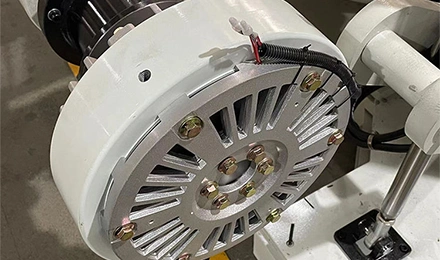

  • Full automatic tension control.

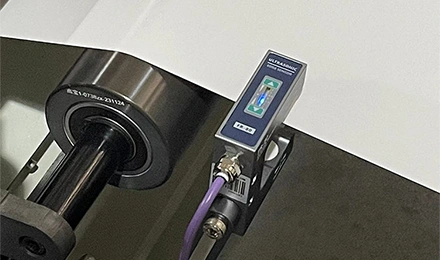

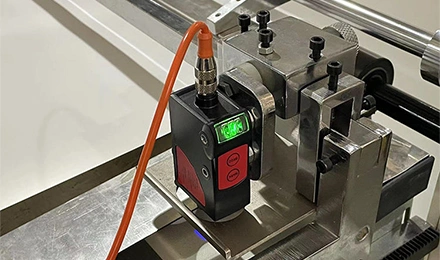

  • Web edge position automatic correct control by system.
  • Waste edge is removed by blower automatically.

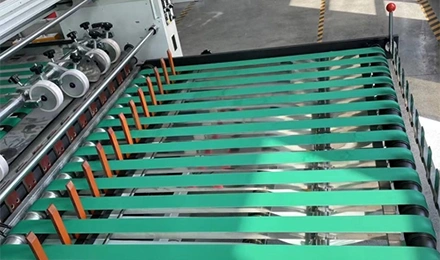

  • Stacked sheet max in 13mm height to be delivered forward by conveyor belt.
Specifications Parameters

 Regular model 1100,1400

Model HQJ-1100C HQJ-1400C
Max. width of master roll 1100mm 1400mm
Max. diameter of master roll Φ1400mm Φ1400mm
Min. width of cutting 100mm 100mm
Length of cutting (regular) 200-400mm 200-400mm
Cutting parameter Speed: 20-150cuts per minute
Total power 380v 50hz 11KW 380v 50hz 13KW
Dimension and weight 18500×1900×2100mm, 3700kg 18500×2200×2100mm, 3800kg
Equipment Details
