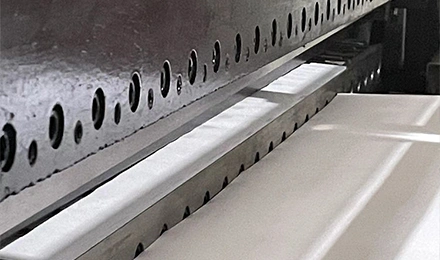

It adopts a servo motor for fixed-length cutting, with high cutting accuracy; the PLC adopts Japan Panasonic, mark inserter, auto alarm shutdown, and automatic stacking and sorting.
Regular model 1100, 1400, 1600
| Popular model | ZHQ-1100B | ZHQ-1400B | ZHQ-1600B |
|---|---|---|---|
| Max width of unwinding roll | 1100mm | 1400mm | 1600mm |
| Max diameter of unwinding roll | Φ1400mm | Φ1400mm | Φ1400mm |
| Cutting parameter | Length: 300-1000mm, Precision: ±0.2mm, Speed: 50-150cuts per minute depends on material features | ||
| Range of raw material thickness | 50-400gsm | 50-400gsm | 50-400gsm |
| Max. height of stacking | 1200mm | 1200mm | 1200mm |
| Total power | 8kw | 10kw | 12kw |
| Dimension and weight | 5800×2700×2000mm, 4000kg | 5800×3000×200mm, 4200kg | 5800×3200×2000mm, 5000kg |
