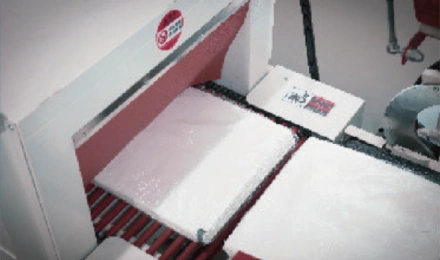

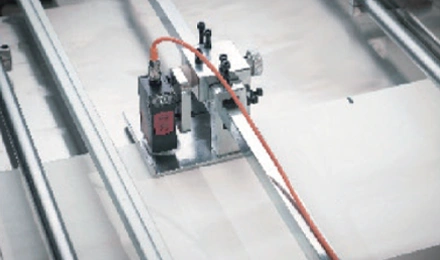

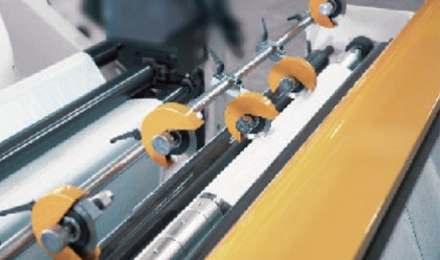

This machine adopts PLC touch screen control and servo motor control for fixed-length cutting. The transmission system adopts pneumatic, photoelectric sensors, and other integrated controls. This machine integrates light, electricity, and gas, and has the advantages of simple operation, high cutting accuracy, mechanical stability, and low noise. The motor has variable frequency speed regulation, automatic counting, auto alarm and stop function, and magnetic powder tension control. It can be cut in multiple sections longitudinally, and the waste edge is automatically removed by the fan. It can be equipped with a packaging machine for automatic packaging.
| Model | HQJ-1400BG |
|---|---|
| Max. width of master roll | 1400mm |
| Max diameter of master roll | Φ1400mm |
| Cutting parameter | Speed: 120times/min, Precision: ±0.2mm |
| Max. width of cutting | 500mm |
| Total power | 16 kw |
| Dimension and weight | 5400×8950×1800mm, 4500kg |
