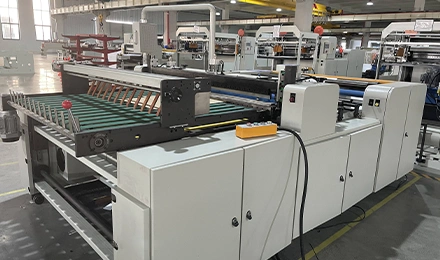

This machine adopts PLC touch screen control and servo motor control for fixed-length cutting. The transmission system adopts pneumatic and photoelectric sensors for integrated control. This machine integrates light, electricity, and gas, and has the advantages of easy operation, high cutting accuracy, mechanical stability, and low noise. The motor has variable frequency speed regulation, automatic counting, auto alarm and stop, and magnetic powder tension control. It can be cut in multiple sections longitudinally, and the waste edges are automatically removed by a fan. It can cut multiple rolls horizontally and vertically at the same time. Automatic conveying and automatic sorting.
| Model | HQJ-1100F | HQJ-1400F |
|---|---|---|
| Max. width of master roll | 1100mm | 1400mm |
| Max. diameter of master roll | Φ1400mm | Φ1400mm |
| Min. width of cutting | 100mm | 100mm |
| Length of cutting | 200-500mm | 200-500mm |
| Cutting parameter | Speed: ≤200times/min, Precision: ±0.2mm | |
| Total power | 20 kw | 23kw |
| Dimension and weight | 18500×1900×2100mm, 8000kg | 18500×2200×2100mm, 1000kg |
