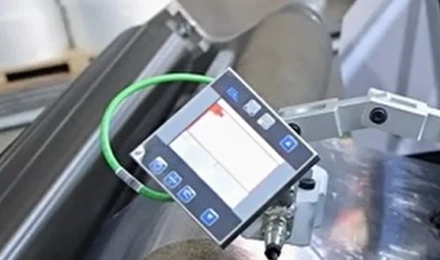

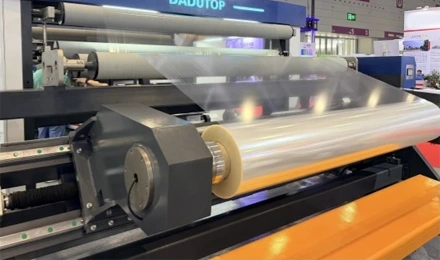

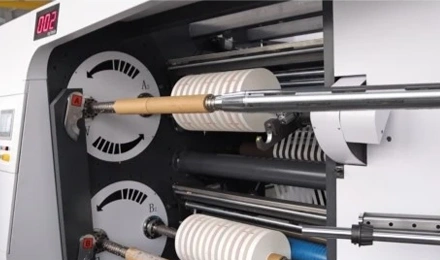

Non-stop slitter rewinder, automatic non-stop roll changing, max speed 600m/min, servotension control, stable and neat rewinding for films, papers, and flexible materials.
| Model | ATFQ-1300 | ATFQ-1600 |
|---|---|---|
| Effective width of unwinding roll |
1300mm |
1600mm |
| Max diameter of unwinding roll |
Φ1200mm |
Φ1200mm |
|
Slitting Width Range |
25-1250mm |
25-1550mm |
|
Available Material Thickness |
Plastic Films 12-100μm Paper 30-200gsm |
Plastic Films 12-100μm Paper 30-200gsm |
| Speed of slitting |
600MPM |
600MPM |
| Power supply |
380V/50Hz, 45-80KW |
380V/50Hz, 45-80KW |
| Dimension and weight | 5000×3500×2500mm, 13.8Tons | 5000×3800×2500mm, 14.8Tons |
