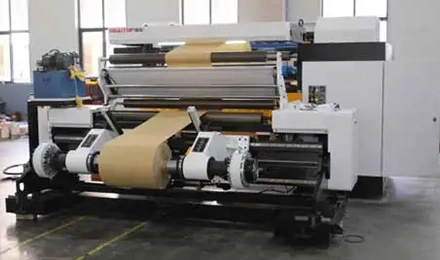

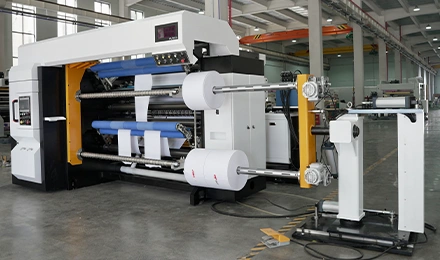

Slitting And Rewinding (Self-adhesive label, non-sensitive plastic films)

Basic slitter rewinder with max rewind diameter 800mm, automatic unload, automatic web guide and tension control.

Inquire Now

Machine Introduction

Advantages and Characteristics

This machine adopts PLC control, three servo motor, automatic tension control, central surface winding smoothly and tightly.
The machine adopts frequency inversion speed regulation to maintain smooth operation during acceleration;
Automatic meter counting, alarm stop;
The winding structure with double friction shaft is adopted to make the unload in an easy operation way.
Automatic web guide system adopts ultrasonic sensor to automatically adjust the edge position.

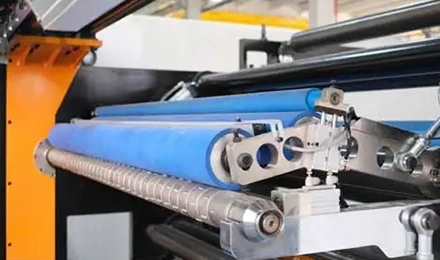

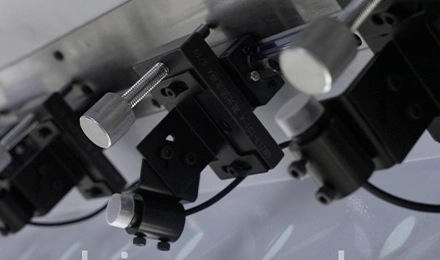

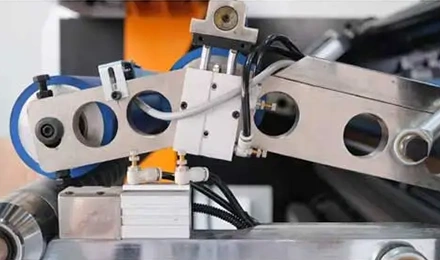

Circular knife cutting, waste trimming edge removed by blower.

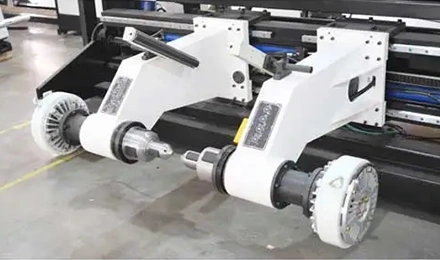

Shaft-less type unwind stand with automatic material loading and lifting,
Automatic unloading finished rolls by puller from friction shaft to unload arm.

Specifications Parameters

Regular model 1600mm

Model	CM-1600
Max width of unwinding roll	1600mm
Max diameter of unwinding roll	Φ1400mm/Φ1600mm
Minimum width of slitting	30mm
Max diameter of rewinding roll	Φ800mm
Speed of slitting	350meter per minute
Power supply	380V 50HZ, 40kw
Dimension and weight	5000×5900×2335mm, 9000kg
