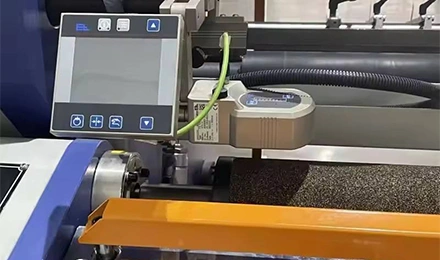

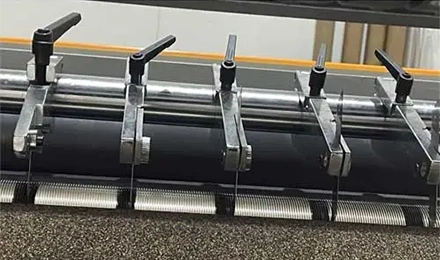

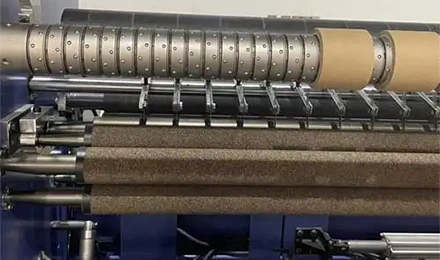

The main machine adopts three servo motors and is equipped with variable frequency speed regulation. Unwinding adopts an ultrasonic CCD deviation correction device; rewinding adopts dual servo motor control, central winding and surface contact are used at the same time, AB double-shaft cross winding, never bites. It adopts PLC automatic meter counting, auto alarm, auto stop, and other functions. Round knife/flat knife slitting method. The waste edge is automatically sucked out by a high-pressure fan.
| Model | MBC-1300 | MBC-1600 |
|---|---|---|
| Effective width of unwinding roll | 1300mm | 1600mm |
| Max diameter of unwinding roll | Φ1400mm | Φ1400mm |
| Minimum width of slitting | 10mm | 10mm |
| Max diameter of rewinding roll | Φ600mm | Φ600mm |
| Speed of slitting | 500m/min | 500m/min |
| Power supply | 380V, 30kw | 380V, 30kw |
| Dimension and weight | 4200×3600×2100mm, 5800kg | 4200×3900×2100mm, 6000kg |
