Slitting and Rewinding Machine (Cup Paper, Kraft Paper)

This slitter rewinder is popular to use in paper bag, paper cup industry. Paper range 20-300gsm, none woven fabric 20-200micron.

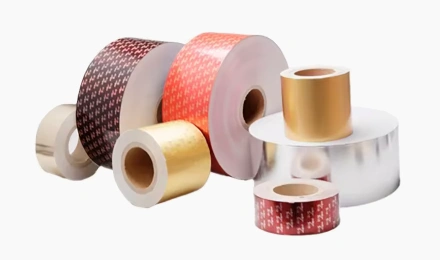

Primary Materials :

Please Choose

PVC
Non-Woven Fabrics
200-400gsm Kraft Paper
White Cardboard
Coated Paper
Silicone Oil Paper
Aluminum Foil
Tin Foil

Cutting parameter :

Enter Your Needs

Inquire Now

Machine Introduction

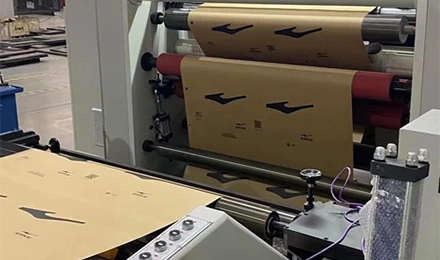

This machine adopts three servo motor control, automatic taper tension, and central winding method. It adopts variable frequency speed regulation to maintain balanced operation during acceleration. Automatic meter counting, auto alarm. Rewinder adopts an A and B air shaft up and down structure. Automatic unloading, easy operation. The unwinding adopts an ultrasonic correction system to enable normal slitting of irregular materials. It adopts circular knife longitudinal slitting method and a high-pressure fan waste edge automatic removal device.

Advantages and Characteristics

This machine adopts synchronous control of three servo motors, automatic constant tension structure, and center rewind;
This machine adopts frequency inverter to keep running smoothly during acceleration
Automatic meter counting, alarm and automatic stop;

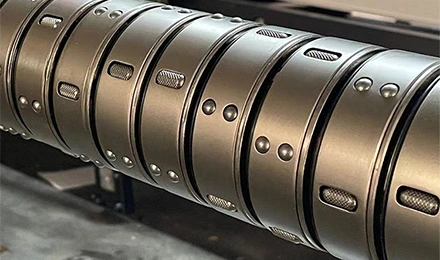

Winding adopts A, B air shaft structure, easy loading and unloading

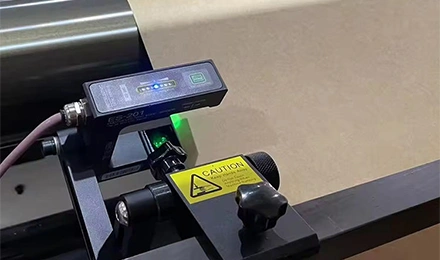

Automatic web guide by pausource ultrasonic sensor
Circular knife slitting, waste edge automatically discharge by blower.

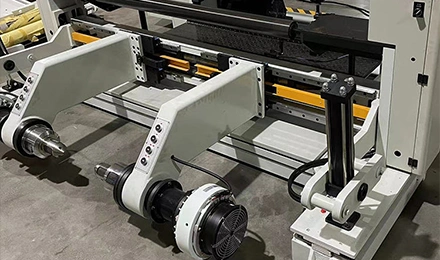

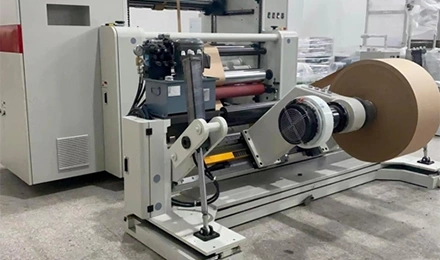

Hydraulic automatic shaft-less material loading.

Specifications Parameters

Model	FQA-1300	FQA-1600	FQA-1800
Effective width of unwinding roll	1300mm	1600mm	1800mm
Max diameter of unwinding roll	Φ1400mm	Φ1400mm	Φ1400mm
Minimum width of slitting	30mm	30mm	30mm
Max diameter of rewinding roll	1000/1200mm	1000/1200mm	1000/1200mm
Speed of slitting	≤350m/min	≤350m/min	≤350m/min
Power supply	380V/50hz 24kw	380V/50hz 26kw	380V/50hz 30kw
Dimension and weight	3300×3150×1930mm, 4000kg	3300×3450×1930mm, 4500kg	3300×3650×1930mm, 5500kg
