Name: Slitting and Rewinding Machine
Brand: Gaobao
SKU: 00012
Rating: 4.9 (56 reviews)

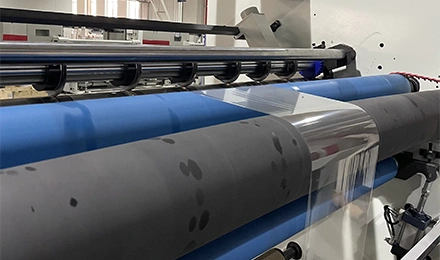

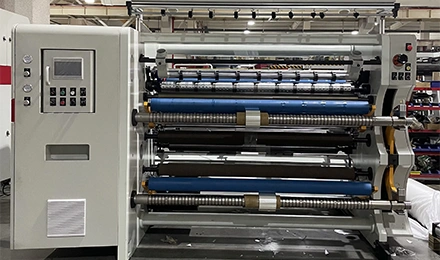

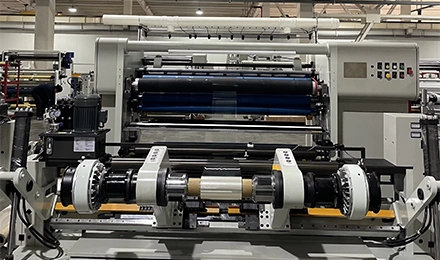

Slitting and Rewinding Machine (Self-adhesive label, plastic film)

This slitter rewinder is to rewind at max diameter 6oomm with verticial slitting.

Inquire Now

Machine Introduction

Advantages and Characteristics

The slitter adopts PLC control, three pcs of Servo Motors, tension automatic control surface & center rewinding tightly and smoothly.)
It adopts frequency inverter to adjust and control speed, it can keep stability when the speed accelerate,
Automatic counter meter, auto alarm and auto stop when the machine had fault. Automatic stop when reach the rewinding meter set.

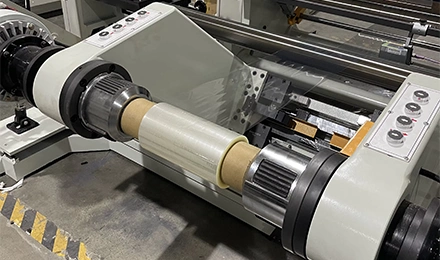

Rewinder adopts A、B two pcs of friction shaft structure, unloading operation easy.
Automatic Web Guide(EPC),

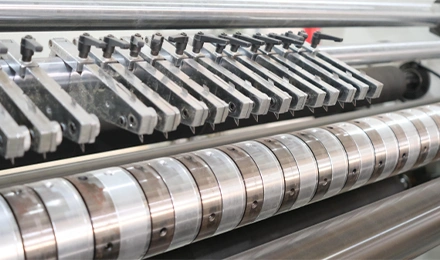

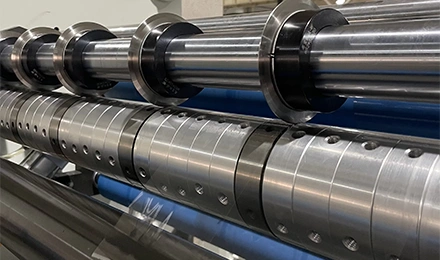

Circular shear knife and razor knife is option for different material features.
Shaft-less type unwind stand with automatic material loading and lifting.
Waste trimming edge removed by blower or mini rewinder.
There are 2 structure to select, compact with integrated unwinder to hose unit, separate unwinder to achieve a bigger diameter.

Specifications Parameters

Regular model 1300, 1600

Model	ZSFQ-1300/1300C	ZSFQ-1600/1600C
Effective width of unwinding roll	1300mm	1600mm
Max diameter of unwinding roll	Φ1400mm (800mm)	Φ1400mm (800mm)
Minimum width of slitting	30mm	30mm
Max diameter of rewinding roll	Φ600mm	Φ600mm
Speed of slitting	350meter per minute	350meter per minute
Power supply	380V/50hz 21 kw	380V/50hz 27kw
Dimension and weight	2050×3000×17200mm, 3500kg	2050×3300×1720mm, 4000kg
