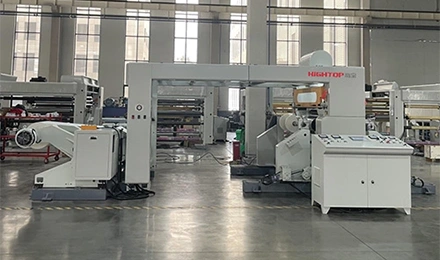

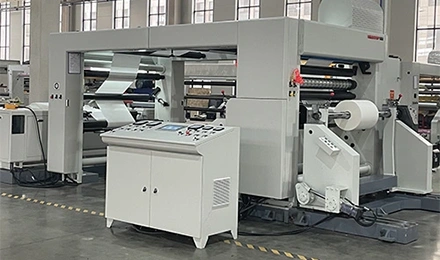

Frame Structured Slitting Rewinding Machine (Coated Paper, Aluminium Foil Paper)

This slitting rewinding machine is designed to convert all kinds of papers(except label), cardboard and Aluminum foil.

Primary Materials :

Please Choose

PVC
Self-Adhesive
Non-Woven Fabrics
White Cardboard
Coated Paper
Aluminum Foil
Super-Large Roll Materials
Carbonless Paper
Cigarette Paper
Kraft Paper

Cutting parameter :

Enter Your Needs

Inquire Now

Machine Introduction

Automatic material loading, Automatic tension control, automatic web guide ultrasonic sensor, automatic stop by setting of diameter or meter, remote assistance available. Circular knife, Heavy duty shaft-less unwind stand, rewind pneumatic shaft 76mm(3INCH) 2pc. Magnetic powder brake/air brake 2pcs for unwind tension control, 3pcs servo motors, MCGS HMI, Siemens PLC, 3pcs Chinese brand inverters, Chinese brand low voltage electronics, one blower for waste edge removal.

Utility Model Patent: ZL202021408874.8/ ZL202321333131.2

Advantages and Characteristics

This machine adopts synchronous control of three servo motors, automatic constant tension structure, and center surface rewind;
This machine adopts frequency inverter to keep running smoothly during acceleration
Automatic meter counting, alarm and automatic stop;

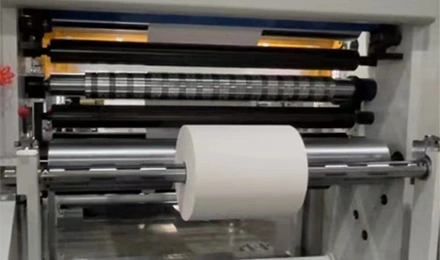

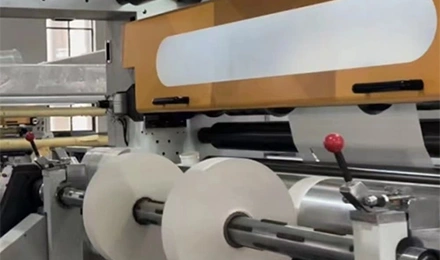

Winding adopts A, B air shaft structure, easy loading and unloading
Automatic web guide by pausource ultrasonic sensor

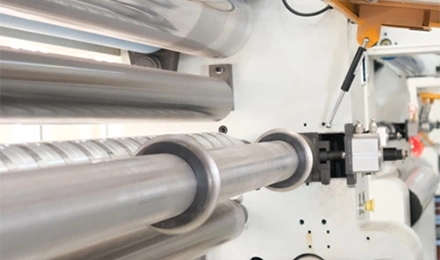

Circular knife slitting, waste edge automatically discharge by blower.

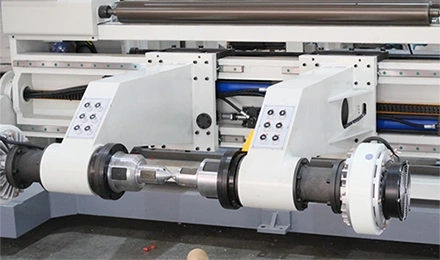

Hydraulic automatic shaft-less material loading.

Specifications Parameters

Regular models, 1300, 1600, 1800, 2000, 2300, 2600, 2800, 3000.

Model	KFQ-1300	KFQ-2000
Effective width of unwinding roll	450-1300mm	450-2000mm
Max diameter of unwinding roll	Φ1600mm	Φ1600mm
Minimum slitting width	40mm	40mm
Max diameter of rewinding roll	1500mm	1500mm
Speed of slitting	350mpm	350mpm
Power supply	380v/50hz, 40kw	380V/50hz, 52kw
Dimension and weight	8500×4450×2850mm, 1300kg	8500×5150×2850mm, 1400kg
