Name: Slitting and Rewinding Machine
Brand: Gaobao
SKU: 00011
Rating: 4.9 (56 reviews)

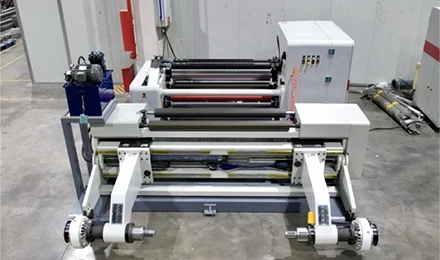

Slitting and Rewinding Machine

This slitter is good to slit jumbo roll of paper, plastic film, aluminum foil to narrow width rolls, for paper straw, flexible packaging.

Inquire Now

Machine Introduction

Advantages and Characteristics

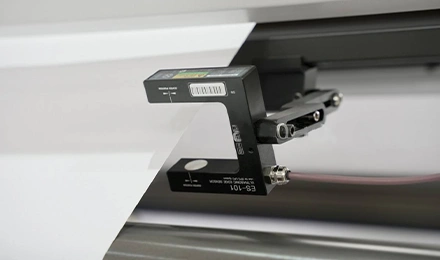

PLC controlling system makes the machine having an intelligent operation. Machine using three sets servo motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface smooth.
Machine use frequency inverter adjust speed, keep stable running when speed accelerate.
Automatic count meter, automatic alarm and stop when the roll reach the setting length.

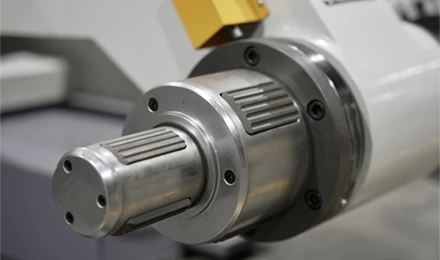

Rewinding shaft use two sets of air shaft structure.

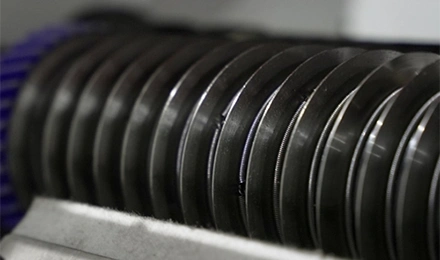

Circular shear knife and razor knife is option for different material features.
Shaft-less type unwind stand with automatic material loading and lifting.
Waste trimming edge removed by blower or mini rewinder.

Specifications Parameters

Regualr model 1100,1300

Model	LBFQ-1100	LBFQ-1300
Effective width of unwinding roll	1300mm	1300mm
Max diameter of unwinding roll	Φ1400mm	Φ1400mm
Max diameter of rewinding roll	Φ800mm	Φ800mm
Speed of slitting	350mpm	350mpm
Power supply	380V/50hz	380V/50hz
Dimension and weight	3962×3450×1650mm, 3800kg	3262×3450×1650mm, 3900kg
