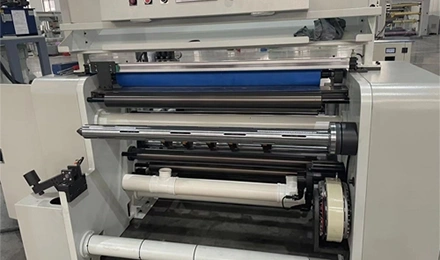

This machine adopts three servo motor control, automatic taper tension, and central winding method. The main machine adopts frequency conversion speed regulation to maintain balanced operation during acceleration. Automatic meter counting, alarm, and other functions. The winding adopts a single air shaft chain structure. Automatic unloading is easy to operate. The unwinding adopts an ultrasonic/CCD automatic correction system to enable irregular materials to be cut normally. The slitting method adopts round knife/flat knife longitudinal cutting, and the waste edge is sucked out by a high-pressure fan automatically. Air shaft automatic feeding method/hydraulic shaftless automatic unwinding device.
| Model | FQFJ-1300 | FQFJ-1600 | FQFJ-1800 |
|---|---|---|---|
| Effective width of unwinding roll | 1300mm | 1600mm | 1800mm |
| Max diameter of unwinding roll | Φ1600mm | Φ1600mm | Φ1600mm |
| Minimum width of slitting | 80mm | 80mm | 80mm |
| Max diameter of rewinding roll | Φ1400mm | Φ1400mm | Φ1400mm |
| Speed of slitting | ≤350m/min | ≤350m/min | ≤350m/min |
| Power supply | 30kw | 35kw | 38kw |
| Dimension and weight | 4400×3200×1650mm, 5400kg | 4400×3500×1650mm, 5600kg | 4400×3700×1650mm, 5900kg |
