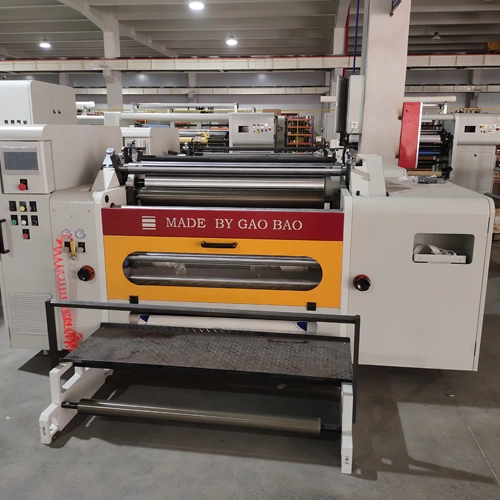

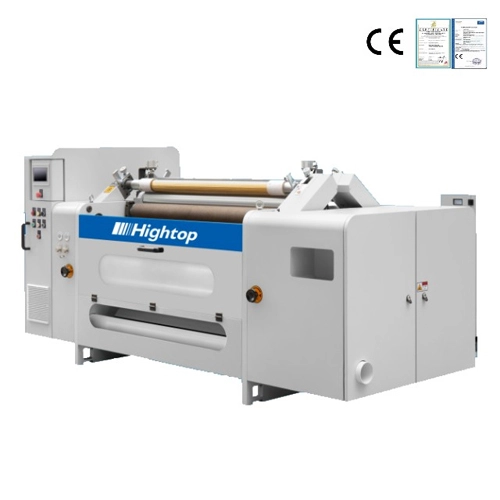

BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine

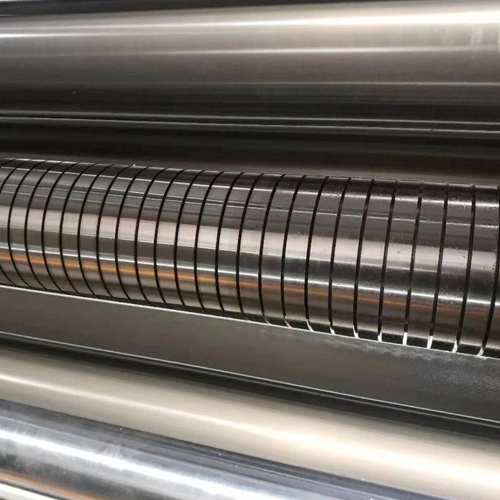

The BDFQ-D model aluminum foil roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine. This type slitter machine can slit and rewind minimum 5mm width aluminum foil rolls. It is mainly used to slit the aluminum foil rolls to narrow width rolls. It is widely using in the aluminum foil products industry.

Characteristics of BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine

Characteristics of BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine

  • The BDFQ Automatic Aluminum Foil Roll Slitting Machine is designed for high precision and speed, capable of handling various thicknesses of aluminum foil.

  • It features automatic operation for increased productivity and efficiency.

  • The machine is adjustable, allowing customization based on project requirements.

  • It is built with robust construction for durability and is designed for low maintenance.

  • Safety features are included to protect the operator. The machine also meets food grade standards, ensuring the safety and hygiene of the aluminum foil used for food packaging.

Specification of BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine

BDFQ-1100D BDFQ-1300D BDFQ-1600D

Model

BDFQ-1100D

Max. Width of unwinding

1100mm

Max. diameter of unwinding

1400mm

Min. Width of slitting

5mm

Max. Diameter of rewinding

600mm

Speed of slitting

≤350m/min

Total Power

6.5kw

Power supply

380V/50hz

Overall dimension

3500*1500*1500(mm)

Weight

3300kg


Model

BDFQ-1300D

Max. Width of unwinding

1300mm

Max. diameter of unwinding

1400mm

Min. Width of slitting

5mm

Max. Diameter of rewinding

600mm

Speed of slitting

≤350m/min

Total Power

8.5kw

Power supply

380V/50hz

Overall dimension

3500*1800*1500(mm)

Weight

3600kg


Model

BDFQ-1600D

Max. Width of unwinding

1600mm

Max. diameter of unwinding

1400mm

Min. Width of slitting

8mm

Max. Diameter of rewinding

600mm

Speed of slitting

≤350m/min

Total Power

10.5kw

Power supply

380V/50hz

Overall dimension

3500*2100*1500(mm)

Weight

3800kg

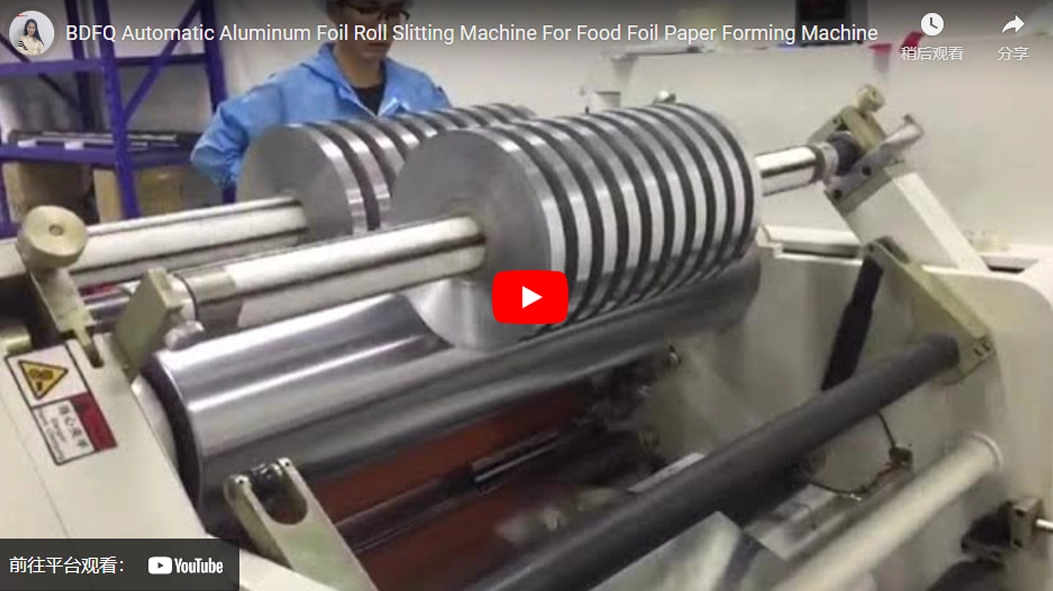

BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine Video

BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine Video

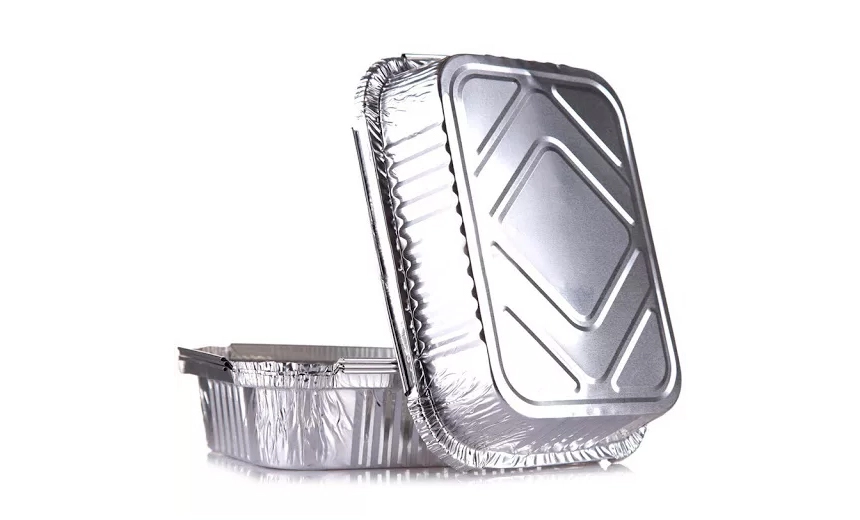

Applications of BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine

aluminium foil slitting machine
aluminium foil slitting machine
aluminum foil slitting machine
aluminum foil slitting machine
surface slitting machine
surface slitting machine

Packaging of BDFQ Automatic Aluminum Foil Roll Slitting Machine For Food Foil Paper Forming Machine
