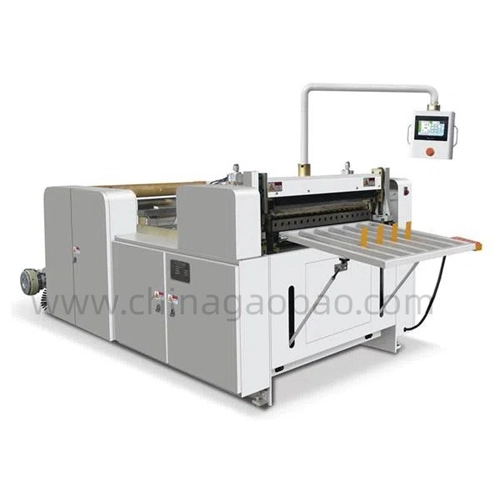

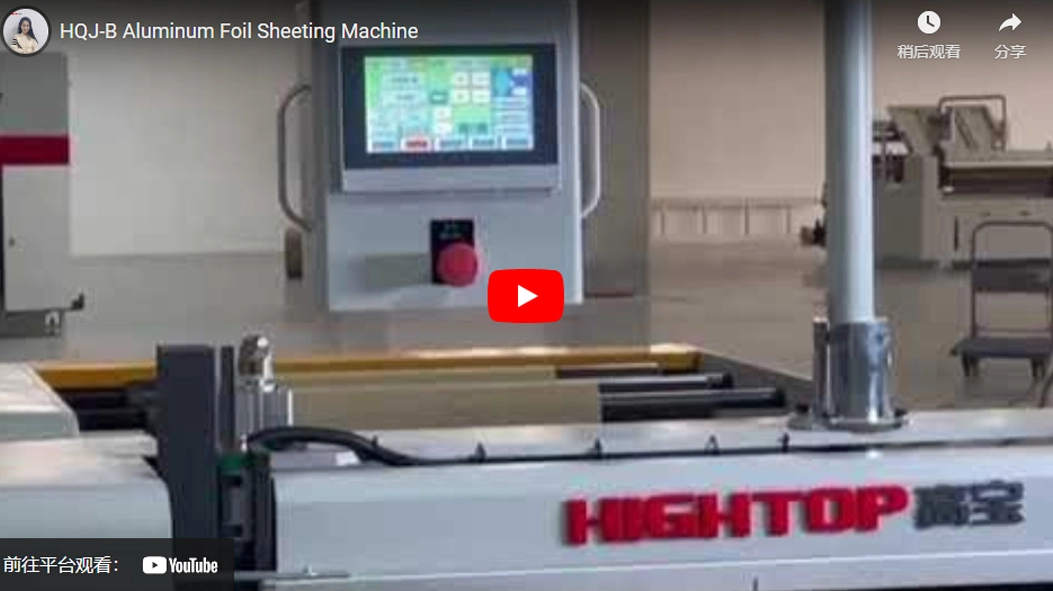

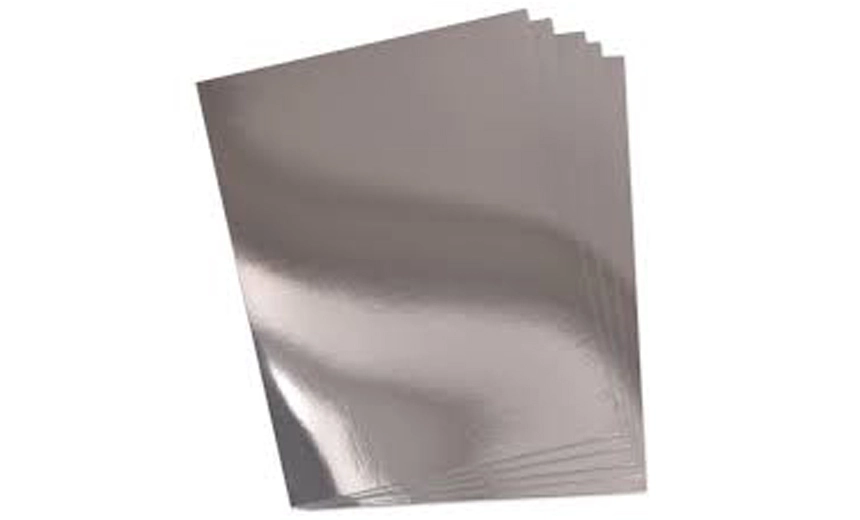

The HQJ-B-800/1100/1400 series machine is a customize size sheets cutting machine. It also be called roll to sheets cutting machine,paper sheeter machine,cutting slitting machine for cutting length sheets in the printing and packaging industry products.The machine not only can cut general and special paper material,also can cut pvc, aluminum foil,pet,pp and so on plastic film material from jumbo roll to sheets form.
Machine Rack: 16mm thickness machine body wall make the machine more stronger and running stale.

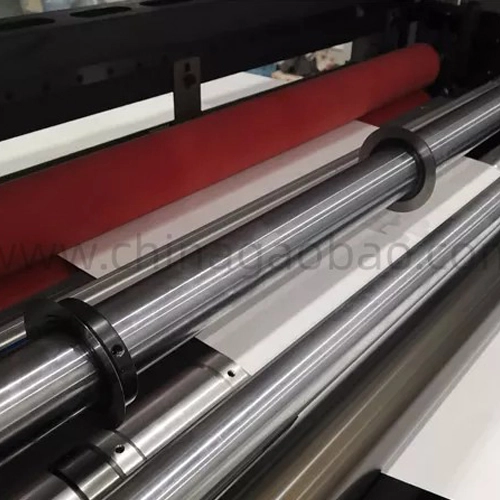

Aluminum Rollers: All aluminum rolls installed in the machine,which are being dynamic balance testing. Material can smoothly move in these rollers without any scratching.
PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision.
Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine.
Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range).
Model | HQJ-800B |
Max. Width of cutting | 800mm |
Max. diameter of material | 1400mm |
Length of cutting | 20-1500mm |
Precision | ±0.2mm |
Speed | ≤200 times/min |
Total Power | 6.5kw |
Power supply | 380V/50hz |
Overall dimension | 3200*1600*1400(mm) |
Weight | 1400kg |
Model | HQJ-1100B |
Max. Width of cutting | 1100mm |
Max. diameter of material | 1400mm |
Length of cutting | 20-1500mm |
Precision | ±0.2mm |
Speed | ≤200 times/min |
Total Power | 6.5kw |
Power supply | 380V/50hz |
Overall dimension | 3200*1900*1400(mm) |
Weight | 1600kg |
Model | HQJ-1400B |
Max. Width of cutting | 1400mm |
Max. diameter of material | 1400mm |
Length of cutting | 20-1500mm |
Precision | ±0.2mm |
Speed | ≤200 times/min |
Total Power | 8kw |
Power supply | 380V/50hz |
Overall dimension | 3200*2200*1400(mm) |
Weight | 2100kg |
