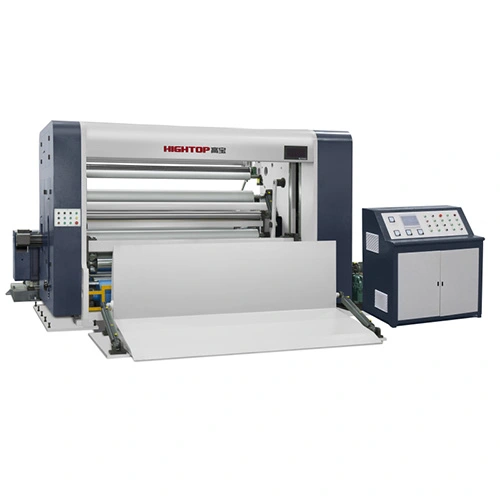

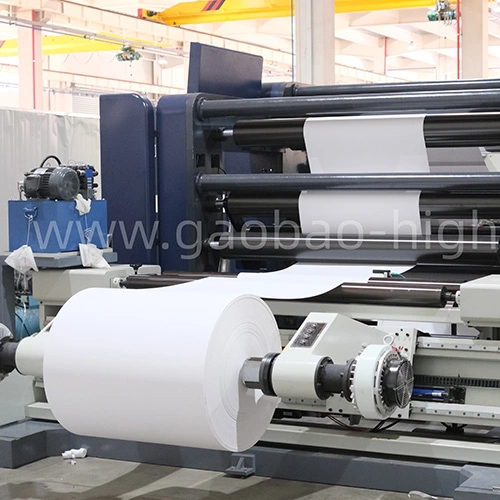

DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE

Gaobao paper roll slitting machine is suitable for slitting and rewinding various jumbo roll materials, such as 40g/㎡-260g/㎡ roll paper, coated paper, special paper, white cardboard, kraft paper, coated paper, coated paper,  plastic composite materials and so on. If you want more information about the jumbo paper roll slitting and rewinding machine, paper roll slitter and thermal paper roll cutting machine price, Please do not hesitate to contact the Gaobao paper slitting machine supplier.

CHARACTERISTICS OF GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE

CHARACTERISTICS OF GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE

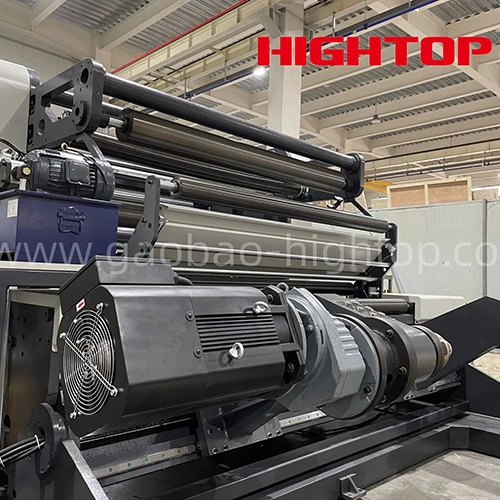

  • The jumbo paper roll slitting and rewinding machine adopts five servo motor synchronous control、Automatic taper tension structure, Surface coiling mode;

  • Paper roll slitting machine use frequency converter adjust speed, keep stable running when speed go up;

  • Automatic loading, automatic edge position correct, automatic count meter, automatic constant tension control, alarm and other functions;

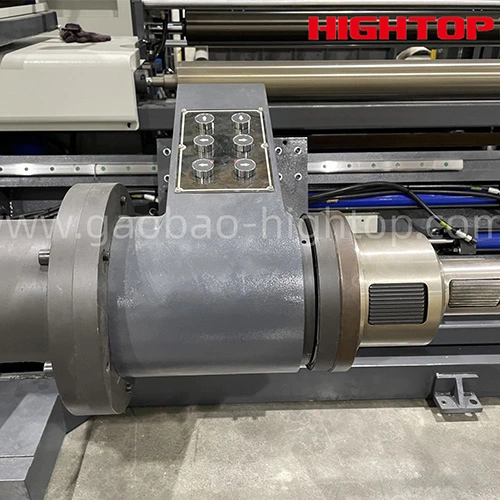

  • Winding adopts shaftless clamping and rewinding structure, the press roll is controlled by hydraulic system, push arm automatically push material, automatic tipper hydraulic discharge is easy to operate;

A. Unwinding adopts static analogue ultrasonic wave (Taiwan Puliyuan);

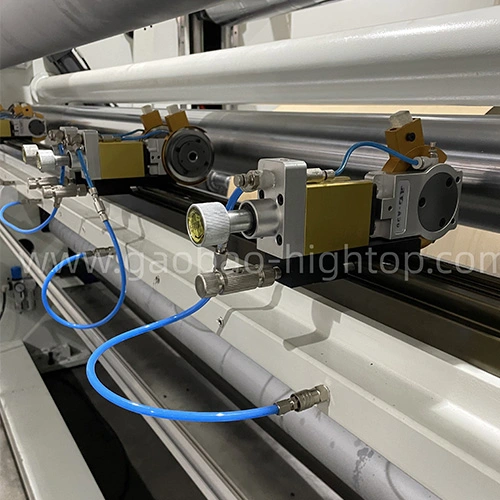

B. Automatic discharge device for waste edge cutting with round knife;

C. Hydraulic automatic shaftless feeding frame structure.

SPECIFICATION OF GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE

DGFQ-2000 DGFQ-2600

Model

DGFQ-2000

Max. Width of unwinding

2000mm

Max. diameter of unwinding

1500mm

Max. diameter of rewinding

1500mm

Precision

±0.2mm

Speed

0-800 m/min

Total Power

130kw

Power supply

380V/50hz

Overall dimension

6250×5300×2600 mm

Weight

About 22 T


Model

DGFQ-2600

Max. Width of unwinding

2600mm

Max. diameter of unwinding

1500mm

Max. diameter of rewinding

1500mm

Precision

±0.2mm

Speed

0-800 m/min

Total Power

130kw

Power supply

380V/50hz

Overall dimension

6150×5860×2600 mm

Weight

About 22 T

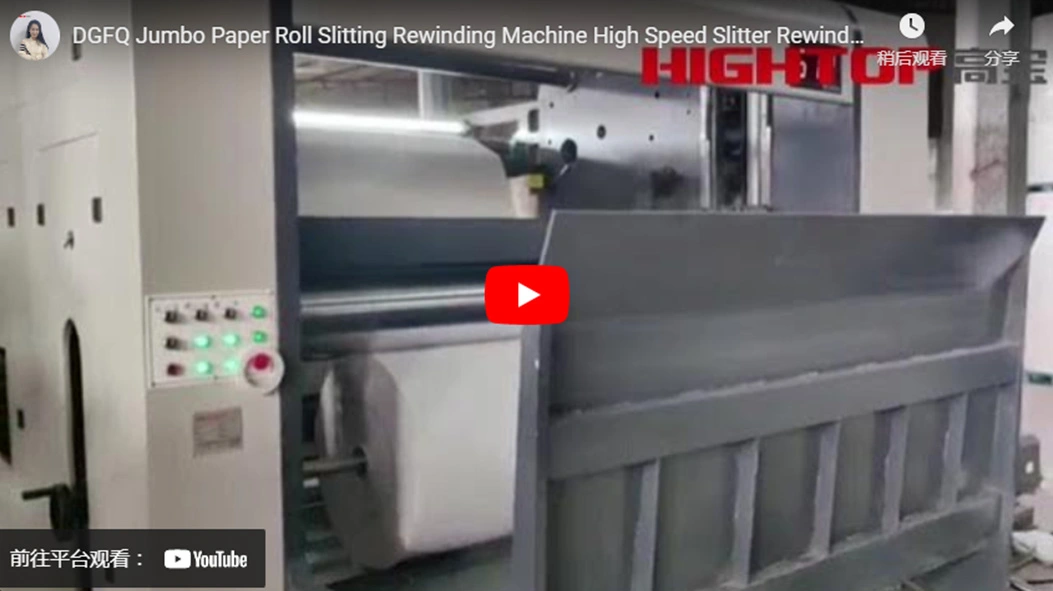

GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE VIDEO

GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE VIDEO

APPLICATIONS OF GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE

  • Printing Industry: The jumbo roll cutting machine is essential for preparing large rolls of paper for printing presses. It ensures precise slitting and rewinding, which is crucial for maintaining print quality and reducing downtime.


  • Packaging Industry: The jumbo paper roll slitter rewinder is widely used to produce packaging materials such as labels, tapes, and wrapping paper. Its ability to handle large rolls and convert them into specific widths and lengths enhances packaging efficiency.


  • Tissue and Hygiene Products: In the production of tissue paper, napkins, and other hygiene products, the jumbo paper roll slitting and rewinding machine ensures that the paper is cut and rewound to the exact specifications needed for further processing and packaging.


  • Industrial Manufacturing: Many manufacturing processes require paper in specific dimensions. The jumbo paper roll slitter rewinder machine provides the precision and speed needed to meet these requirements, making it indispensable in various industrial applications.


  • Specialty Paper Products: For specialty paper products such as coated papers, laminates, and custom-sized sheets, the jumbo paper roll slitter rewinder offers the flexibility to produce high-quality, customized paper rolls that meet specific client needs.

thermal paper roll slitting machine
thermal paper roll slitting machine
paper slitting machine price
paper slitting machine price

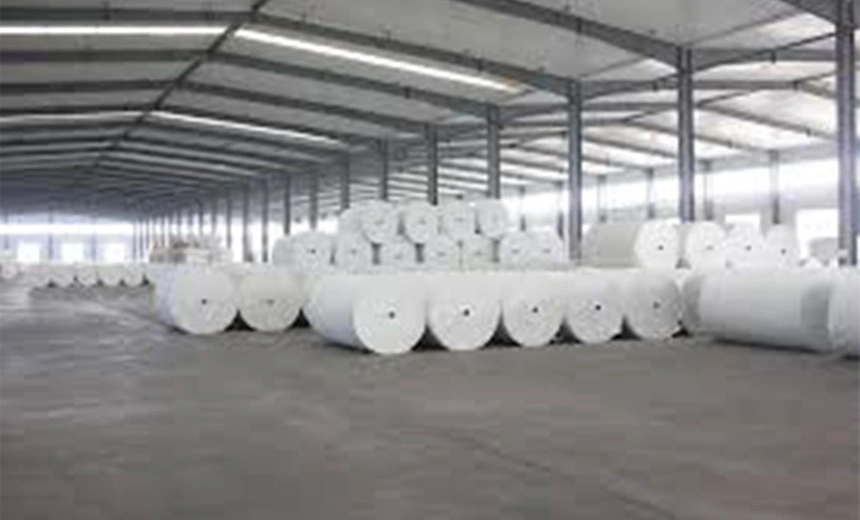

PACKAGING OF GAOBAO DGFQ JUMBO PAPER ROLL SLITTING MACHINE HIGH SPEED PAPER ROLL SLITTER REWINDER MACHINE
