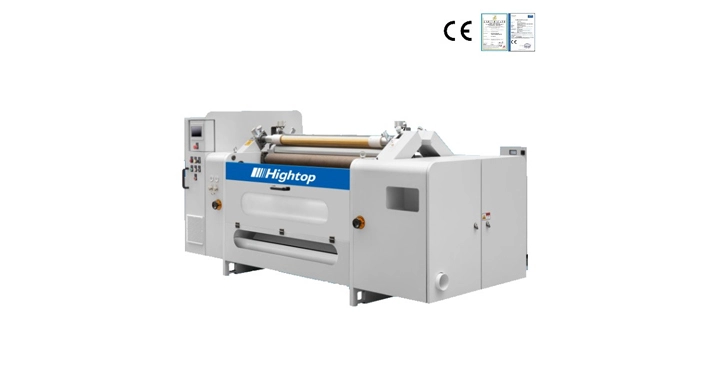

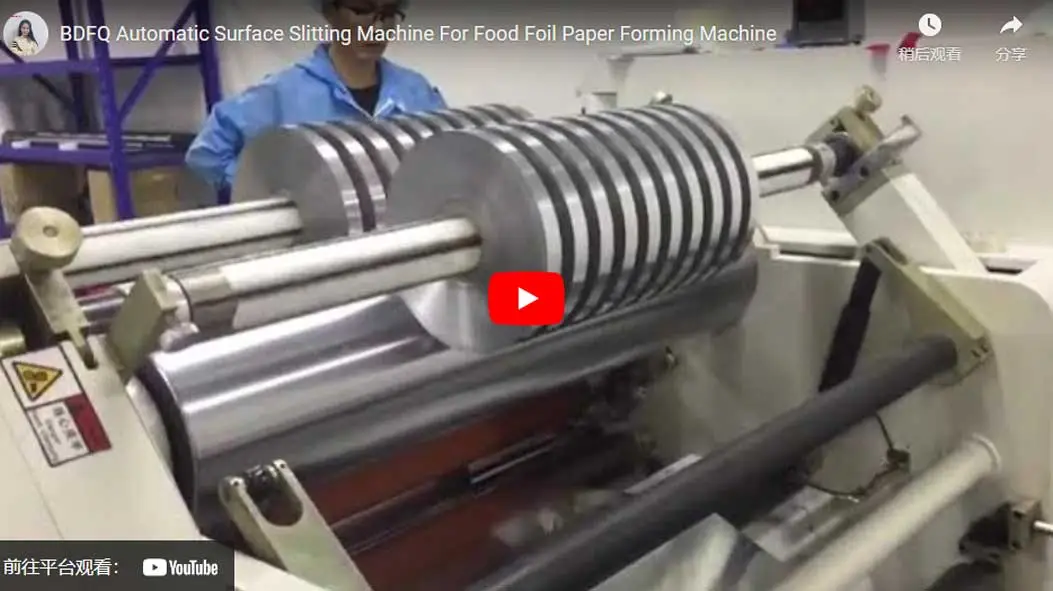

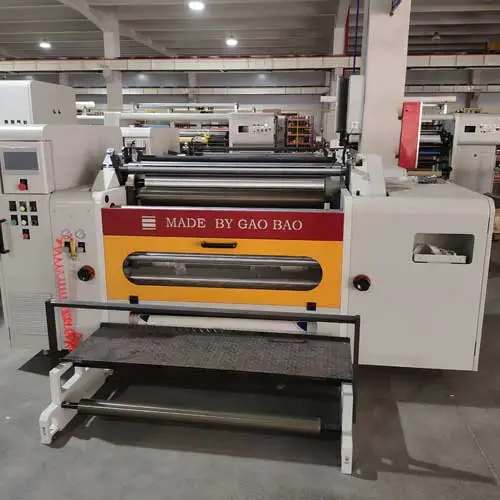

Gaobao BDFQ automatic surface slitter machine is suitable for slitting and rewinding rolls of virgin paper, BOPP, PVC, insulating paper, non-woven fabric, special paper, etc. If you want to know more about surface slitter rewinder, surface slitting machine, surface winding slitting machine prices, and costs, Please do not hesitate to contact the Gaobao paper rewinder machine manufacturer.
Model | BDFQ-1100D |
Max. Width of unwinding | 1100mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 5mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 6.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*1500*1500(mm) |
Weight | 3300kg |
Model | BDFQ-1300D |
Max. Width of unwinding | 1300mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 5mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 8.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*1800*1500(mm) |
Weight | 3600kg |
Model | BDFQ-1600D |
Max. Width of unwinding | 1600mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 8mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 10.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*2100*1500(mm) |
Weight | 3800kg |
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
