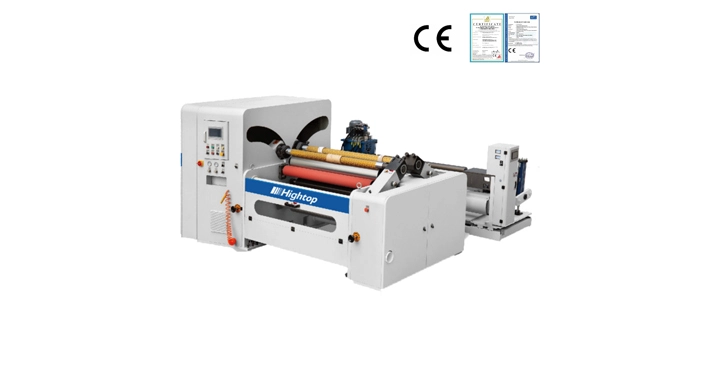

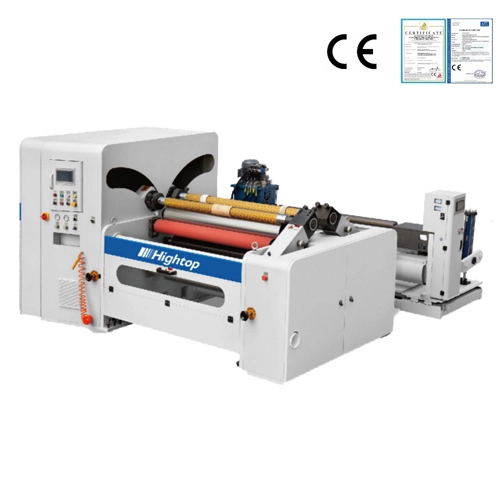

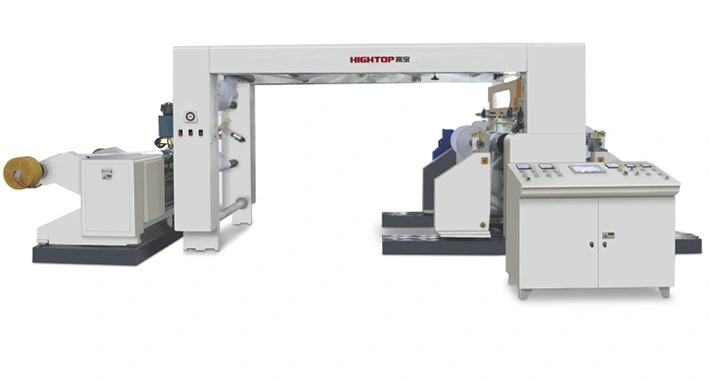

LBFQ Non Woven Roll Slitting Machine

Name: LBFQ Non Woven Roll Slitting Machine
Brand: Zhejiang Gaobao Machinery Co.,Ltd.

The LBFQ model Non Woven roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine. This type slitter machine can slit and rewind minimum 5mm width Non Woven rolls. It is mainly used to slit the Non Woven rolls to narrow width rolls. It is widely using in the Non Woven products industry.

Characteristics of LBFQ Non Woven Roll Slitting Machine

High Precision: The LBFQ Non Woven Roll Slitting Machine is designed to provide high precision cutting, ensuring that each piece is cut to the exact size required.
High Speed: This machine operates at a high speed, allowing for large volumes of material to be cut in a short amount of time.
Versatility: It can handle a variety of non-woven materials, making it a versatile choice for different industries.

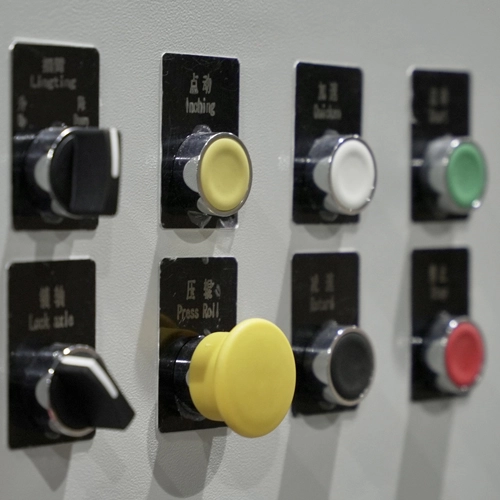

Easy Operation: The machine is designed with user-friendly controls, making it easy to operate even for those with little experience.
Durability: The LBFQ Non Woven Roll Slitting Machine is built to last, with a robust construction that can withstand heavy use.

Specification of LBFQ Non Woven Roll Slitting Machine

LBFQ-1100 LBFQ-1300 LBFQ-1600

Model	LBFQ-1100
Max. Width of unwinding	1100mm
Max. diameter of unwinding	1400mm
Min. Width of slitting	5mm
Max. Diameter of rewinding	800mm
Speed of slitting	≤350m/min
Total Power	25kw
Power supply	380V/50hz
Overall dimension	345031001650(mm)
Weight	4000kg

Model	LBFQ-1300
Max. Width of unwinding	1300mm
Max. diameter of unwinding	1400mm
Min. Width of slitting	5mm
Max. Diameter of rewinding	800mm
Speed of slitting	≤350m/min
Total Power	25kw
Power supply	380V/50hz
Overall dimension	345033001650(mm)
Weight	4500kg

Model	LBFQ-1600
Max. Width of unwinding	1600mm
Max. diameter of unwinding	1400mm
Min. Width of slitting	8mm
Max. Diameter of rewinding	800mm
Speed of slitting	≤350m/min
Total Power	30kw
Power supply	380V/50hz
Overall dimension	350035001650(mm)
Weight	5000kg

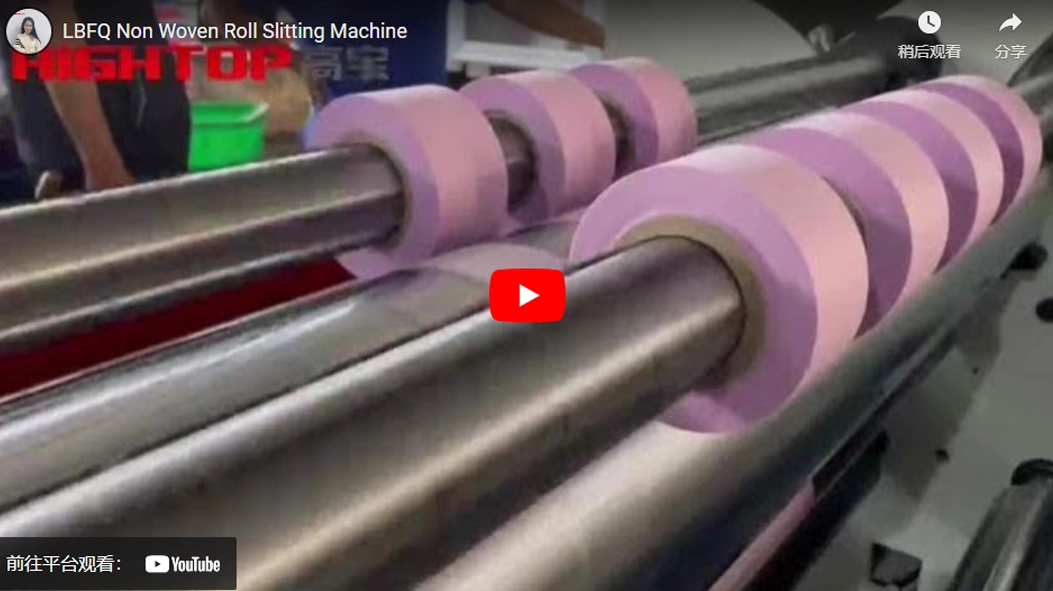

LBFQ Non Woven Roll Slitting Machine Video

Products

Applications of LBFQ Non Woven Roll Slitting Machine

LBFQ Slitter rewinder machine is mainly used to slit the Non Woven rolls to narrow width rolls.

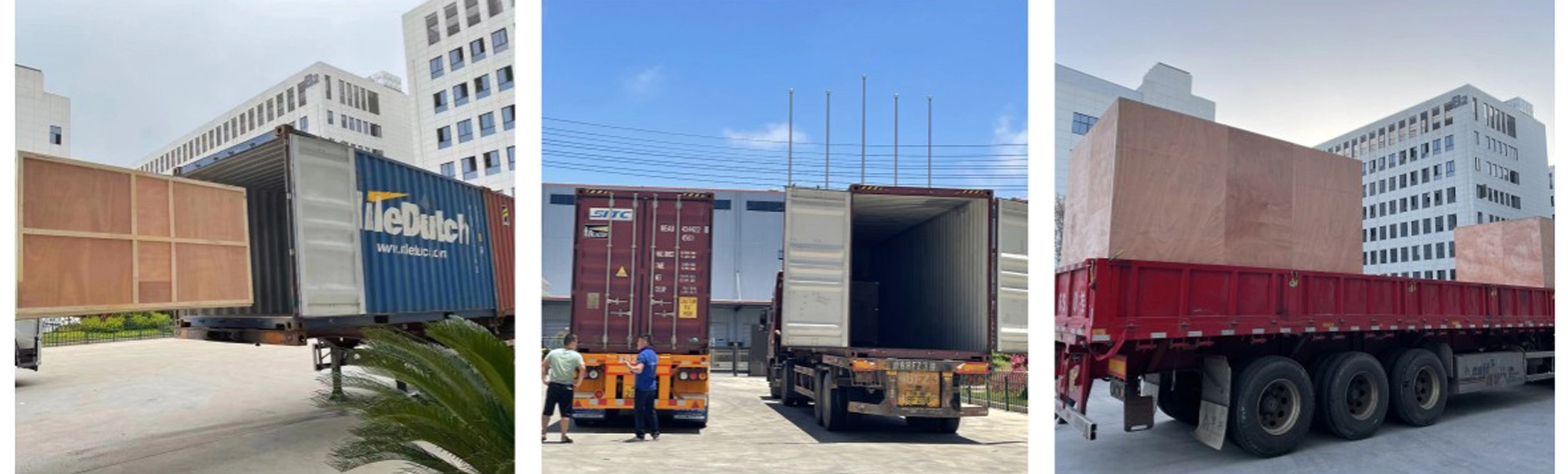

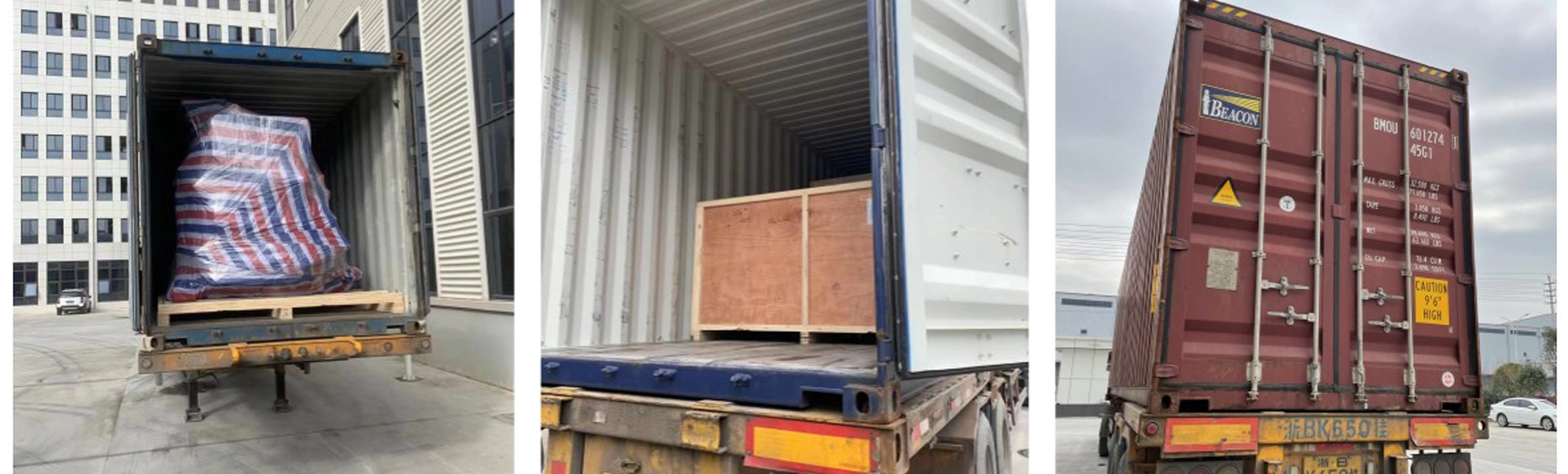

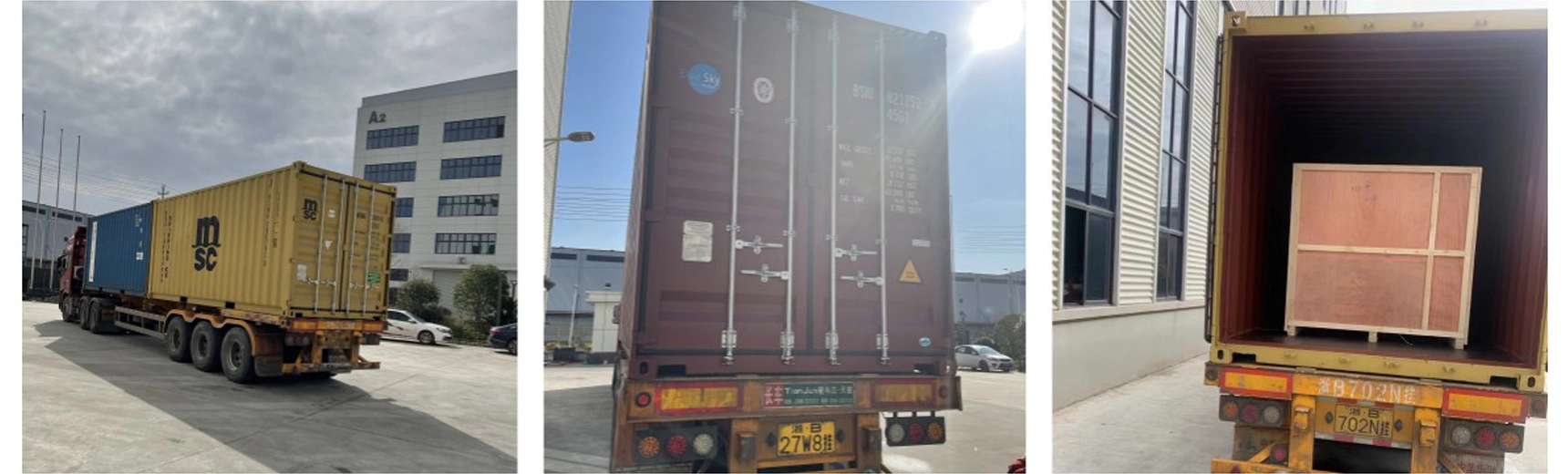

Packaging of LBFQ Non Woven Roll Slitting Machine

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.
