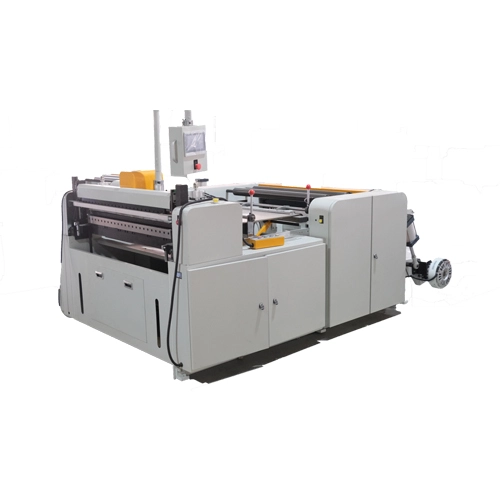

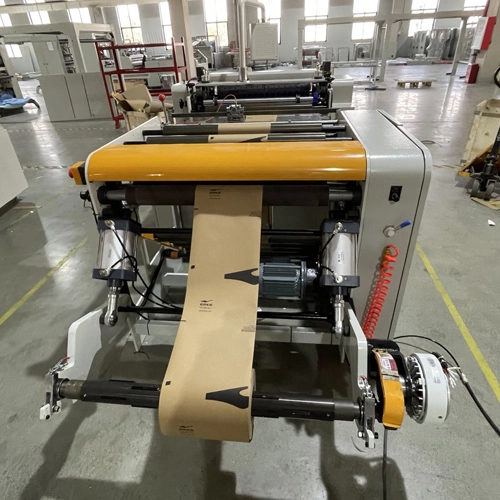

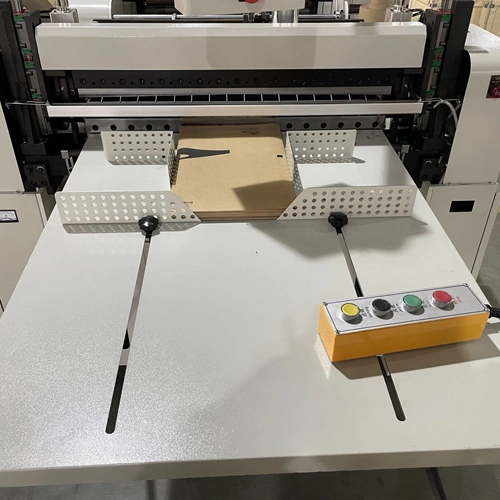

HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine

Name: HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine
Brand: Zhejiang Gaobao Machinery Co.,Ltd.

The HQJ-B-800/1100/1400 series machine is a customize size sheets cutting machine. It also be called roll to sheets cutting machine, paper sheeter machine, cutting slitting machine for cutting length sheets in the printing and packaging industry products. The machine not only can cut general and special paper material, also can cut pvc, Non Woven, pet, pp and so on plastic film material from jumbo roll to sheets form.

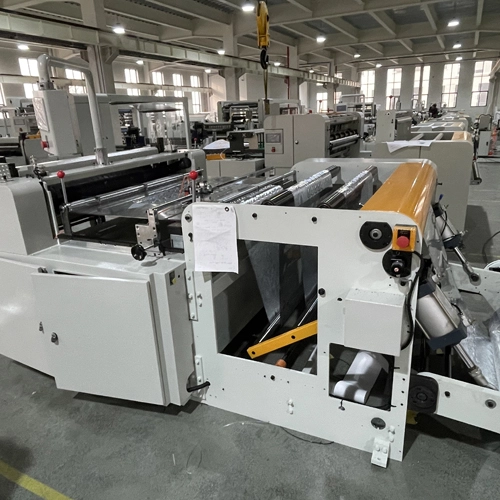

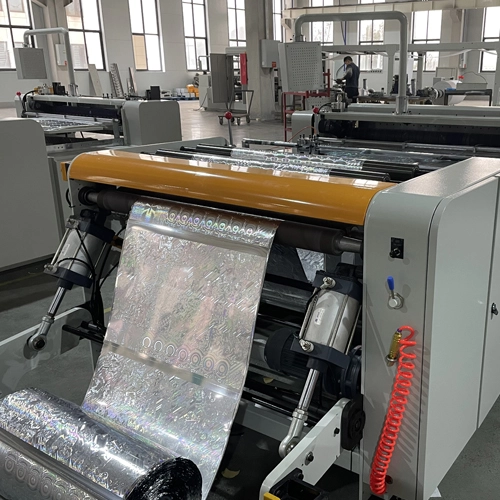

Characteristics of HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine

Machine Rack: 16mm thickness machine body wall make the machine more stronger and running stale.
Aluminum Rollers: All aluminum rolls installed in the machine,which are being dynamic balance testing. Material can smoothly move in these rollers without any scratching.
PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision.
Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine.
Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range)

Specification of HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine

HQJ-800B HQJ-1100B HQJ-1400B

Model	HQJ-800B
Max. Width of cutting	800mm
Max. diameter of material	1400mm
Length of cutting	20-1500mm
Precision	±0.2mm
Speed	≤200 times/min
Total Power	6.5kw
Power supply	380V/50hz
Overall dimension	320016001400(mm)
Weight	1400kg

Model	HQJ-1100B
Max. Width of cutting	1100mm
Max. diameter of material	1400mm
Length of cutting	20-1500mm
Precision	±0.2mm
Speed	≤200 times/min
Total Power	6.5kw
Power supply	380V/50hz
Overall dimension	320019001400(mm)
Weight	1600kg

Model	HQJ-1400B
Max. Width of cutting	1400mm
Max. diameter of material	1400mm
Length of cutting	20-1500mm
Precision	±0.2mm
Speed	≤200 times/min
Total Power	8kw
Power supply	380V/50hz
Overall dimension	320022001400(mm)
Weight	2100kg

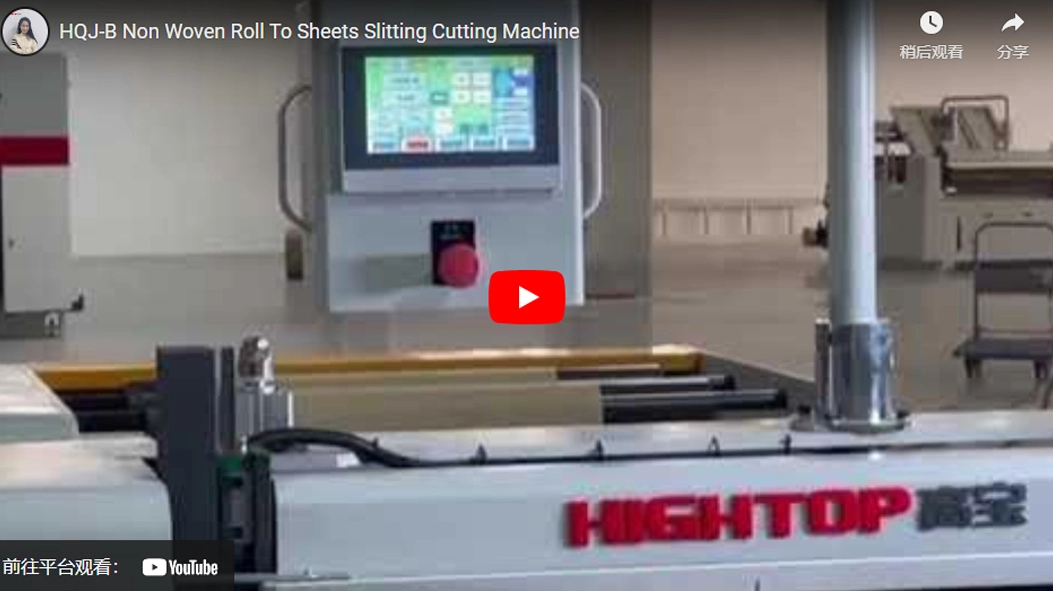

HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine Video

Products

Applications of HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine

HQJ-B Cutting Machine is suitable for Non Woven jumbo roll materials.

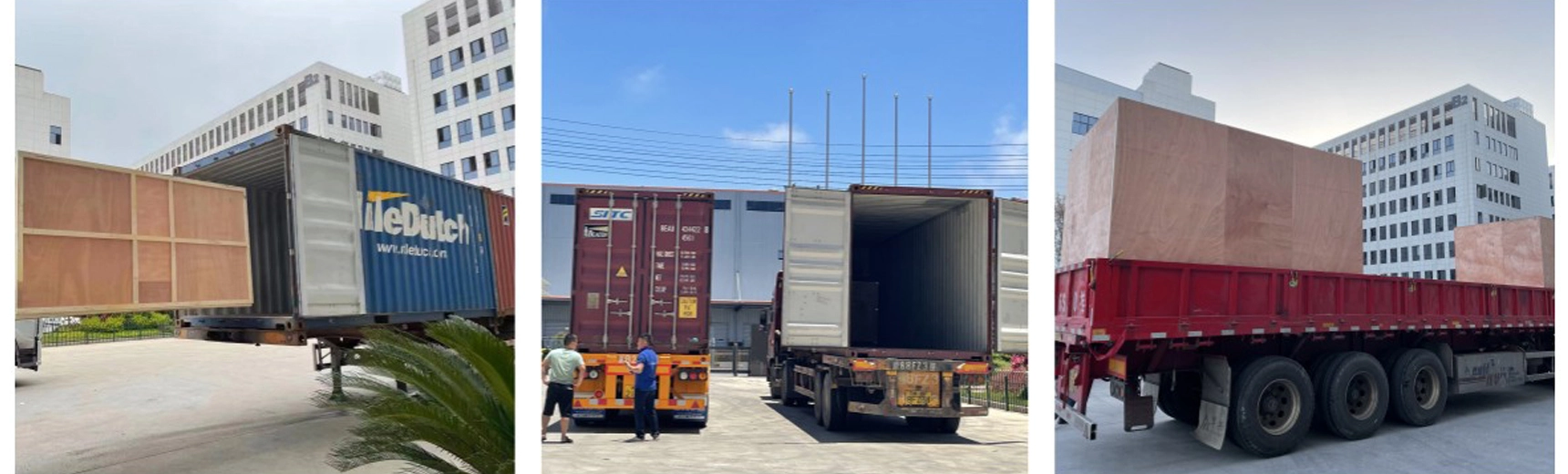

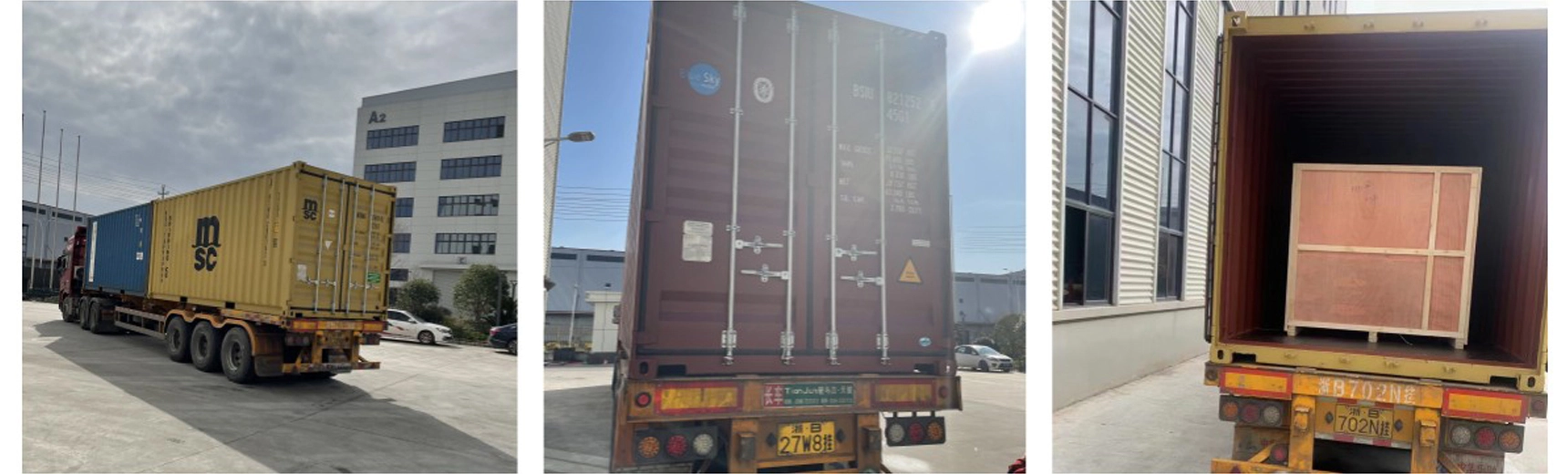

Packaging of HQJ-B Non Woven Roll To Sheets Slitting Cutting Machine

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.
