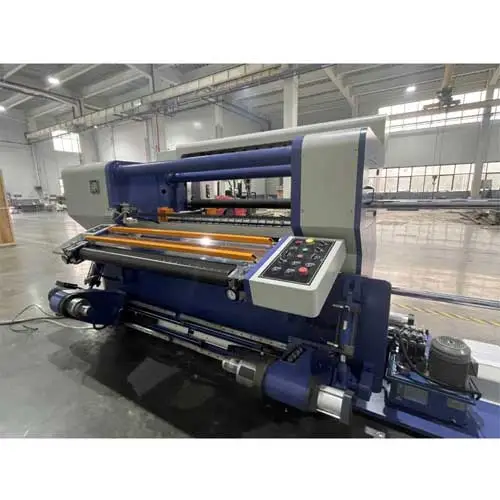

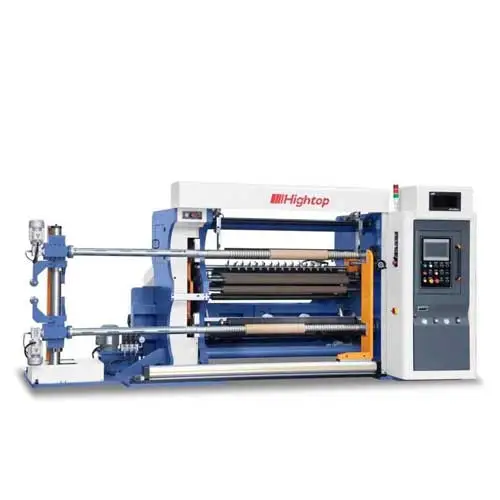

FQM 1600 Servo High-Speed Slitter Rewinder Machine

FQM servo high speed slitter rewinder machine is suitable for PET, BOPP, CPP, PE, non-woven fabric, PVC, optical materials, film, paper and various materials.

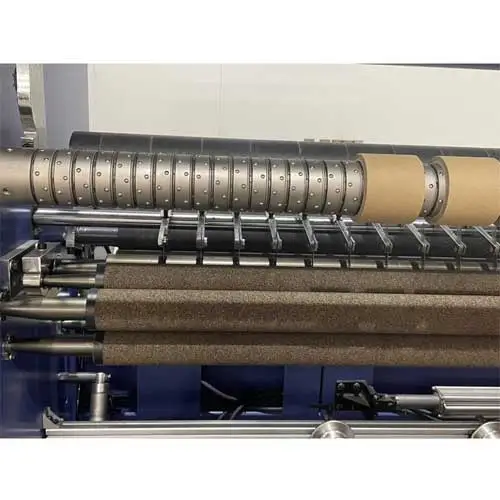

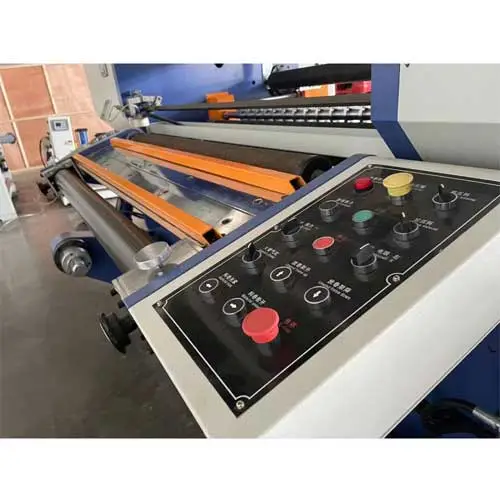

Characteristics of FQM 1600 Servo High-Speed Slitter Rewinder Machine

Characteristics of FQM 1600 Servo High-Speed Slitter Rewinder Machine

  • The machine use PLC control, four pcs Servo Motors, tension automatic control surface¢er rewinding together way(The rewinding way make the narrow roll hard and slitting surface smooth.)

  • The machine use frequency converter to adjust and control speed,it can keep stability when the speed running up.

  • Automatic counter meter, auto alarm and auto stop when the machine had fault. Automatic stop when reach the rewinding roll size you are setting.

  • The rewinding use A、B two pcs pneumatic slip shaft structure, unloader operation easy.

  • The unwinding Web Guide(EPC) use ultrasonic/CCD control way to keep and correct the web material position.

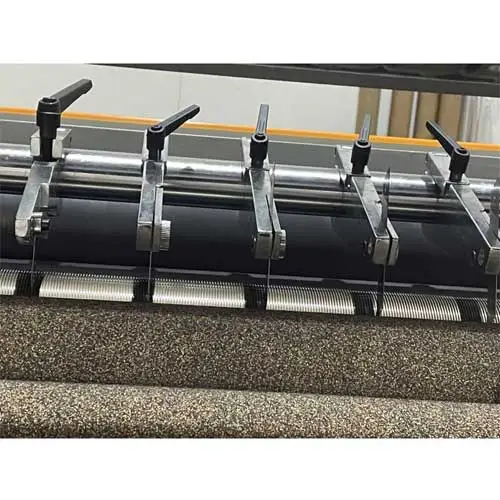

  • It use round/flat blade slitting knife , the waste material automatic take out by blower fan.

  • Auto pneumatic shaft-less loading structure.


Specification of FQM 1600 Servo High-Speed Slitter Rewinder Machine

FQM-1600

Technical parameter

Max width of material roll

1600mm

Min width finished roll

25mm

Max diameter of material roll

1000mm

Max diameter finished roll

600mm

Max material roll weight

1T

Speed of slitting

0-600/min

Material thickness

1μm-750μm

Rewinding way

Central&surface

Precision

±0.2mm

Speed regulation control

Frequency converter

Power input

380V

Dimension

4602*1208*1905

Total weight

3500KG

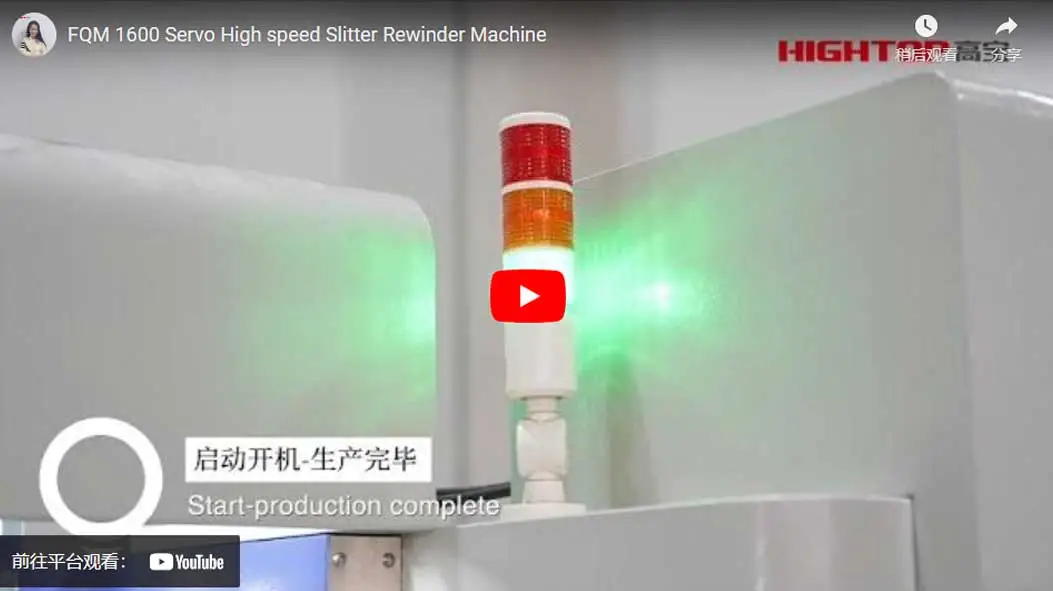

FQM 1600 Servo High-Speed Slitter Rewinder Machine Video

FQM 1600 Servo High-Speed Slitter Rewinder Machine Video

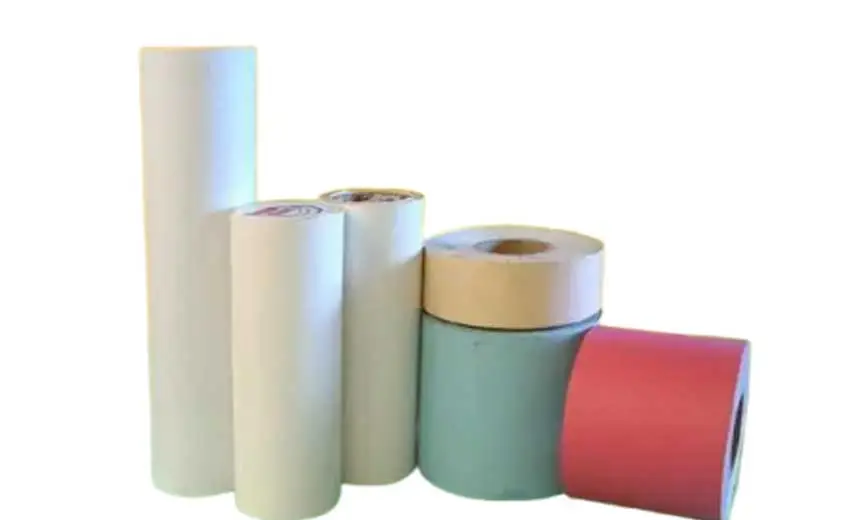

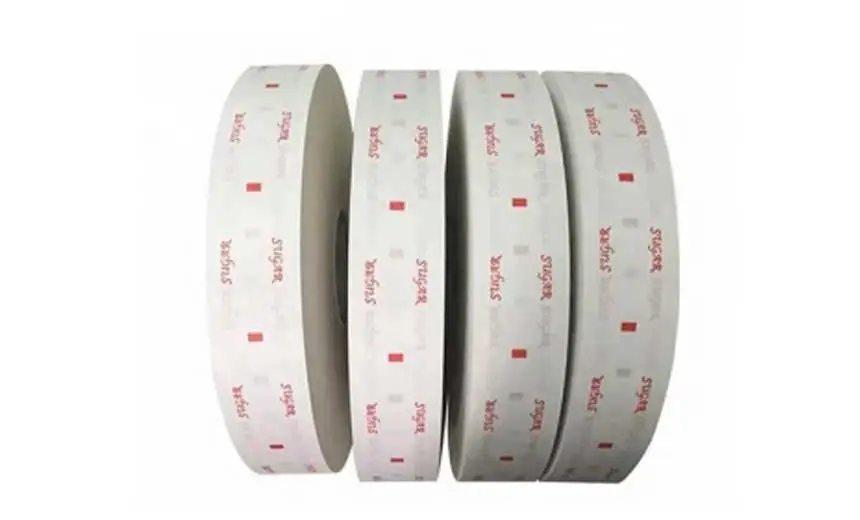

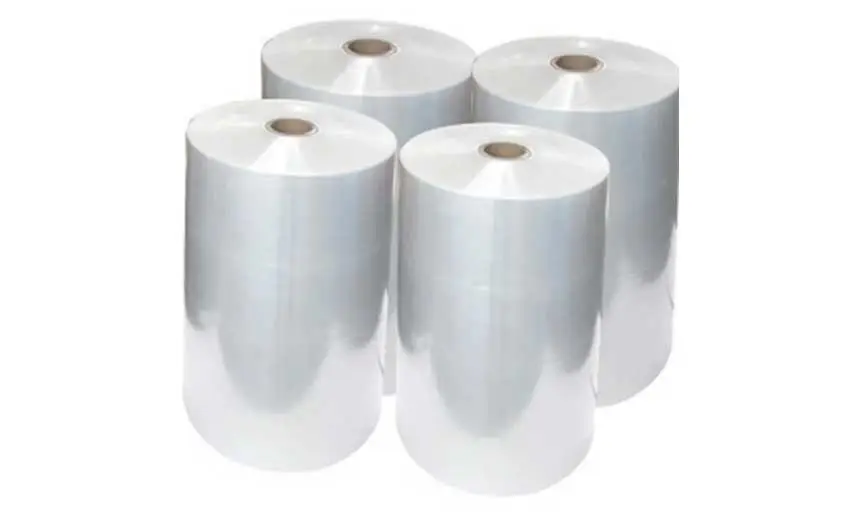

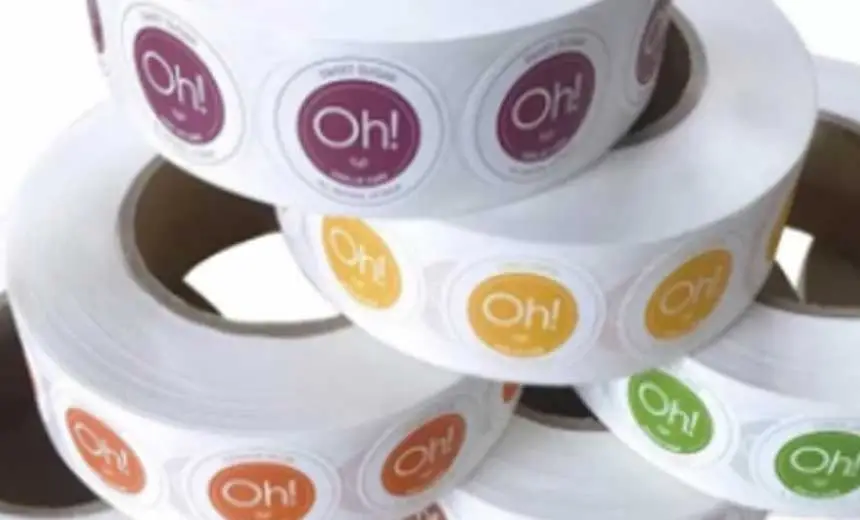

Applications of FQM 1600 Servo High-Speed Slitter Rewinder Machine

plastic slitting machine
plastic slitting machine
bopp slitting machine
bopp slitting machine
bopp tape rewinding machine
bopp tape rewinding machine
bopp tape slitting rewinding machine
bopp tape slitting rewinding machine

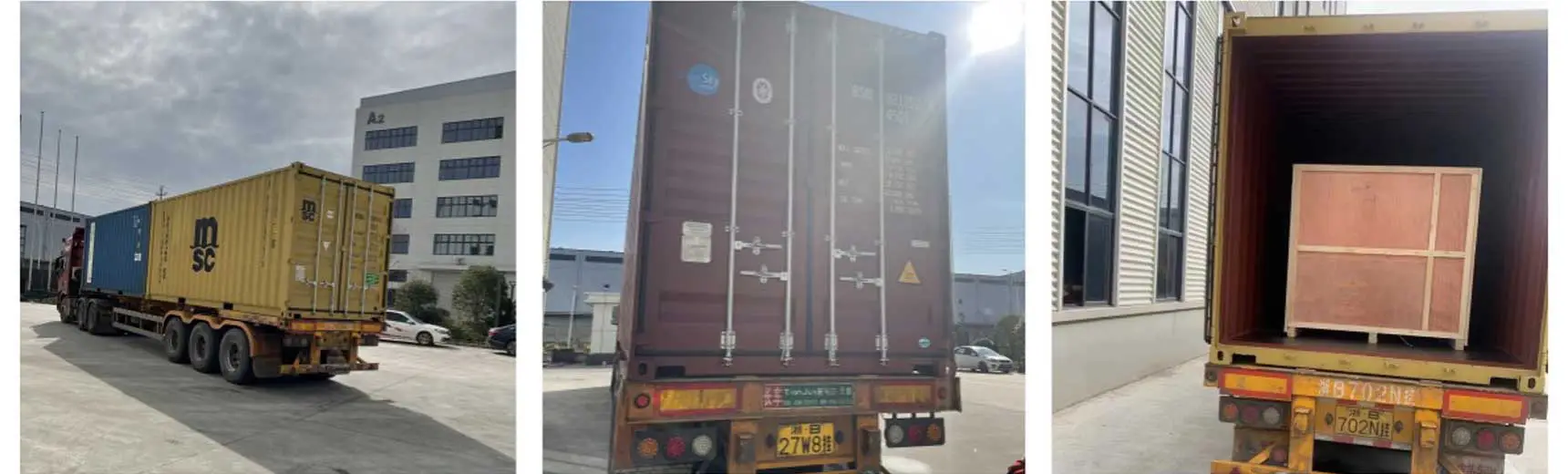

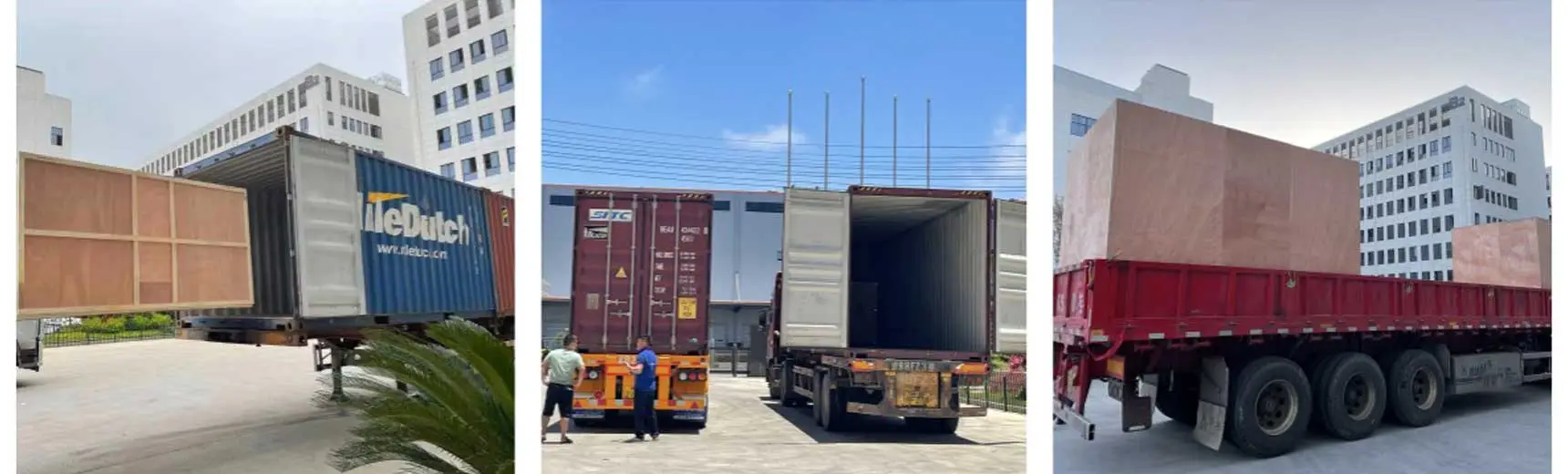

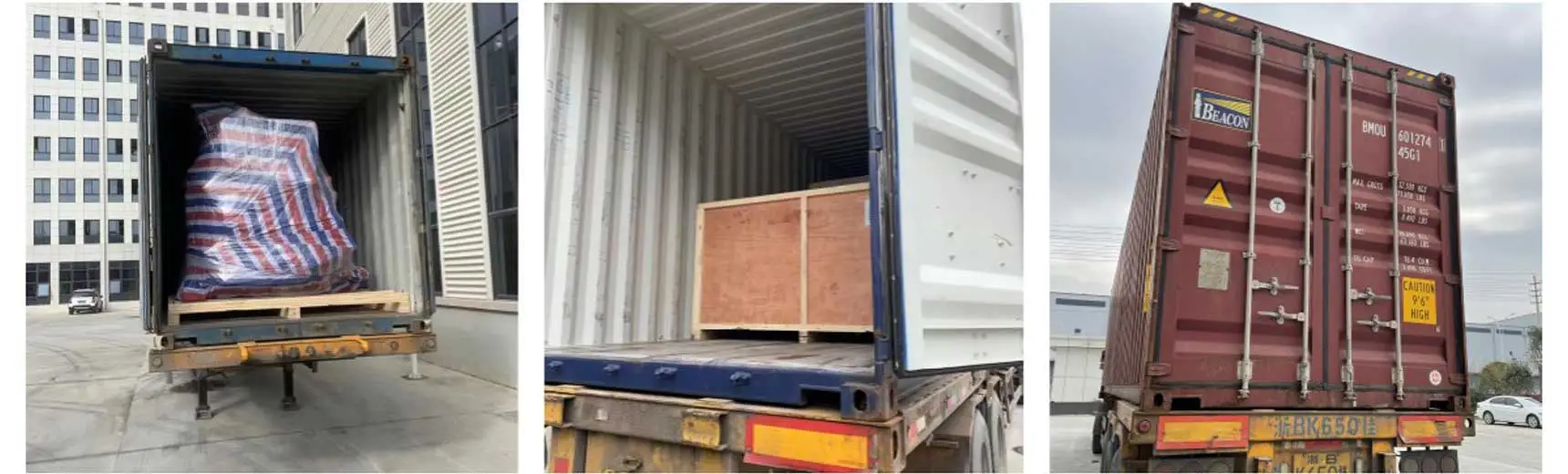

Packaging of FQM 1600 Servo High-Speed Slitter Rewinder Machine

pvc slitting machine
pvc slitting machine
pe slitting machine
pe slitting machine
slitting rewinding machine
slitting rewinding machine

Exhibition of Hightop's Converting Machines

slitting and rewinding machine
slitting and rewinding machine
slitter rewinder
slitter rewinder
surface winding slitting machine
surface winding slitting machine
