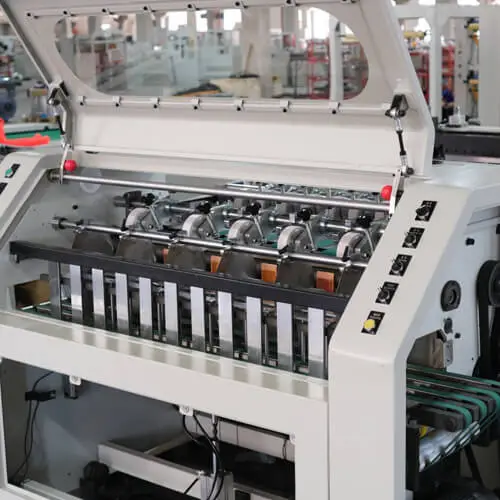

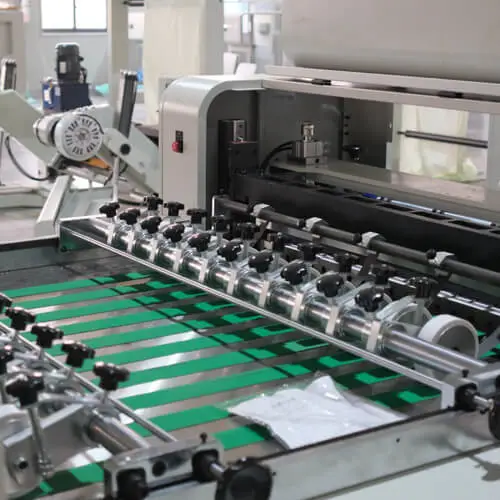

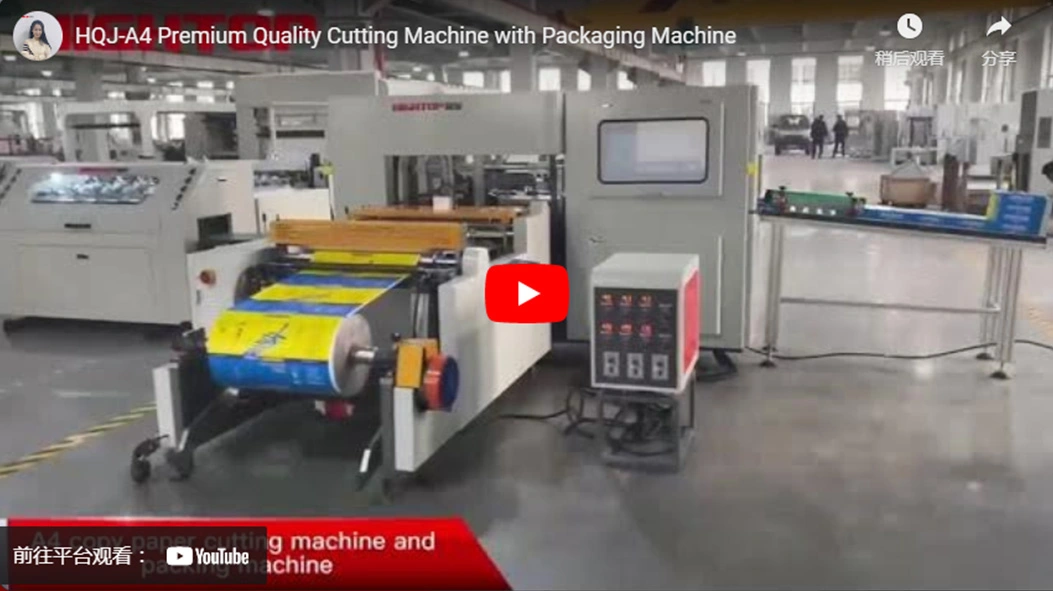

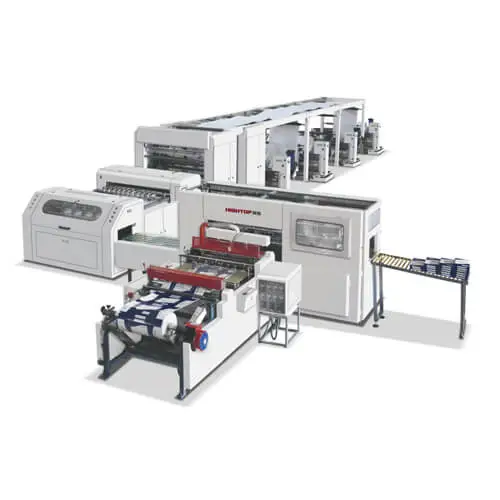

The HQJ-A4/A3 Copy Paper Sheets Production Line have two machines units.It can cut copy paper roll to A4 size paper sheets and wrapping paper sheets into reams. The automatic production line is a middle level speed machine,which have three different options. You can choose one roll,two rolls,and four rolls feeding cutting machine unit with different producing capacity. The automatic wrapping machine is separate in the production line,which can link with different cutting machine unit. As one of the famous paper sheeting machine manufacturers in China, we will offer you a favorable a4 size paper sheet cutting machine price. Please do not hesitate to contact us.
1. The fully automatic a3/a4 paper making machine adopts PLC touchscreen control and a servo motor for controlling constant-length cutting.
2. This a4 sheet cutting machine adopts a pneumatic, photoelectric sensor for controlling the transmission system, with photo, electric, and gas together, it has the functions of easy operation, high precision, good stability, and low noise.
3. This a4 size paper manufacturing machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically, and adopt blower to get rid of waste.

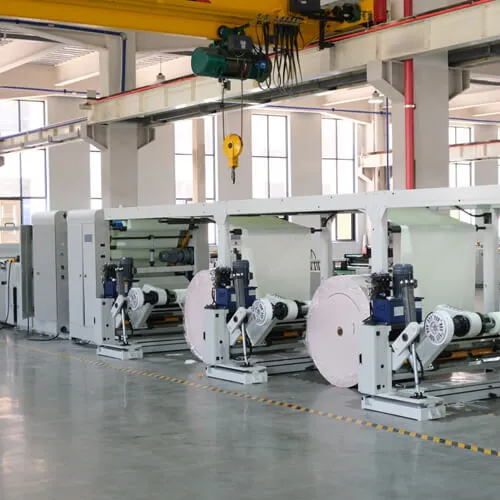

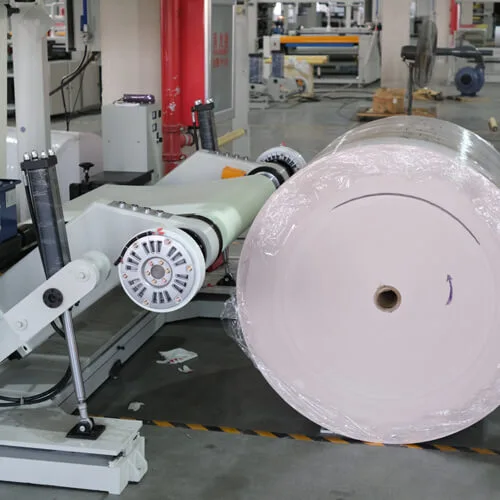

4. This paper roll to a4 sheet cutting machine can be with 1 roll.2rolls.4rolls loading system.
5. With packaging machine.
Model | HQJ-1100 |
Max.Width of unwinding roll | 1100 mm |
Max. Diameter of unwinding roll | 1400 mm |
speed | <200 times/min |
Precision | ±0.2 mm |
Total Power | 20 kw |
Weight | 8000 kg |
Dimension(L*W*H) | 19300x7900x2000 mm |
Model | HQJ-1400 |
Max.Width of unwinding roll | 1400 mm |
Max. Diameter of unwinding roll | 1400 mm |
speed | <200 times/min |
Precision | ±0.2 mm |
Total Power | 23kw |
Weight | 10000 kg |
Dimension(L*W*H) | 19300x8500x2000 mm |
The HQJ-A4 High-Precision Full Automatic Computer Control A3/A4 Size Paper Cutting Machine Production Line is a versatile and efficient solution for various cutting needs. Here are four key applications:
Office Copy Paper: This automatic paper sheet cutting machine is ideal for cutting large rolls of office copy paper into precise A3 and A4 sizes, ensuring uniformity and high-quality output for everyday office use.
Packaging Materials: Paper roll to a4 sheet cutting machine is highly suitable for cutting various packaging materials, including paper-plastic composites, which are commonly used in the packaging industry for their durability and versatility.
Photo Paper: The paper roll to a4 sheet cutting machine excels in cutting photo paper materials, providing clean and accurate cuts that are essential for high-quality photo printing and professional photography applications.
Specialty Papers: Beyond standard office and photo papers, the fully automatic a4 paper making machine can handle a wide range of specialty papers, making it a valuable asset for businesses involved in producing customized paper products, such as invitations, brochures, and other printed materials.
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
