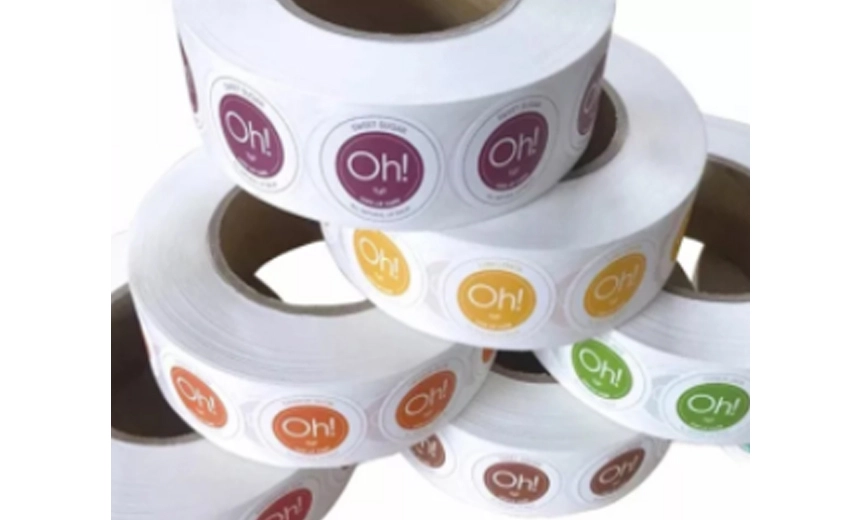

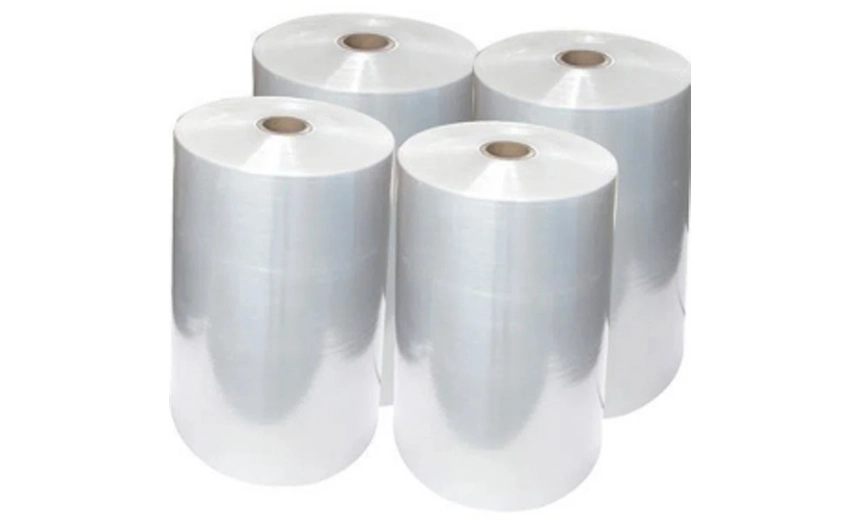

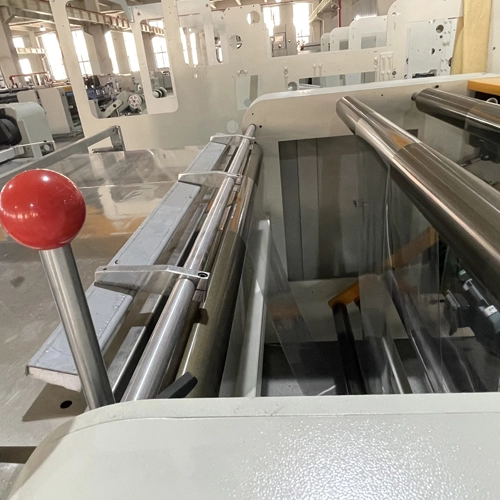

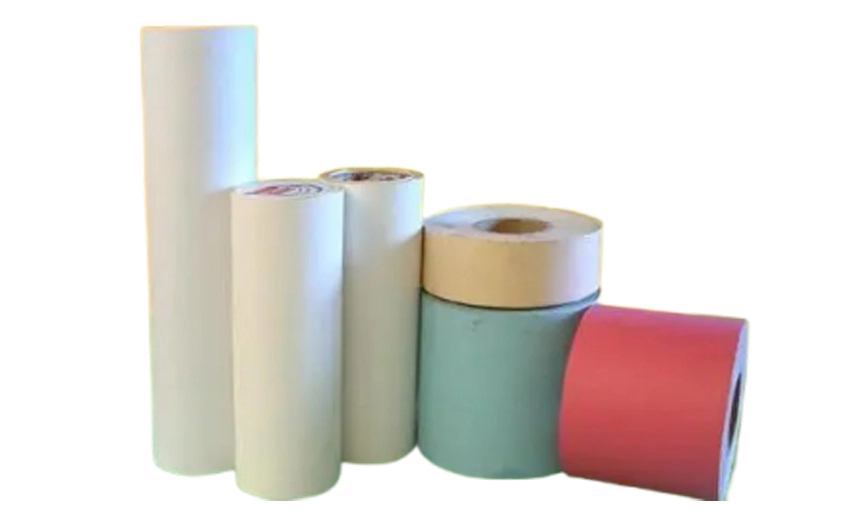

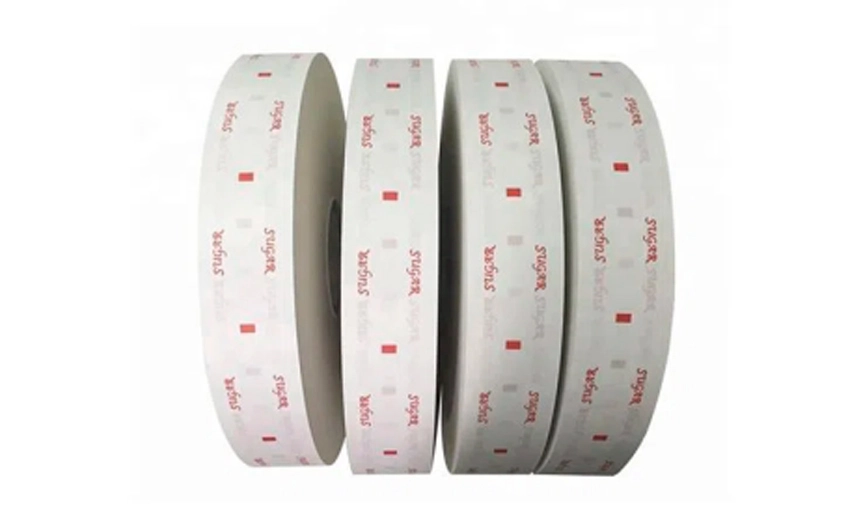

This machine is suitable for cutting various large roll packaging materials such as paper, film, paper-plastic composite, cloth, leather, PVC, PET film, etc.

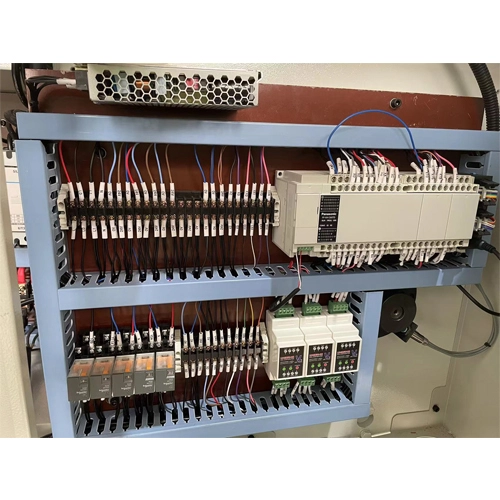

1. This machine uses servo motor PLC to control fixed-length cutting.
2. The transmission adopts pneumatic synchronous belt and brake motor synchronous control.

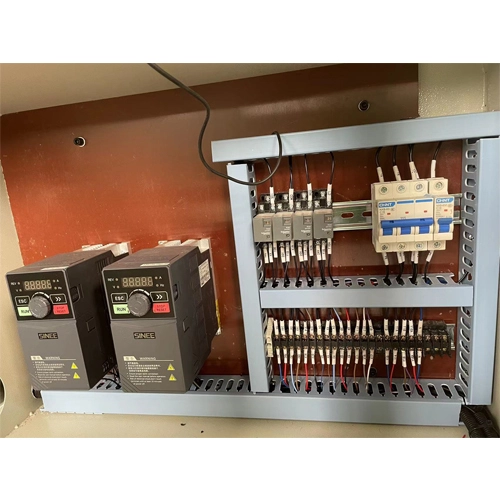

3. The motor has variable frequency speed regulation, automatic counting, alarm stop, and automatic control of magnetic powder tension.
4. It can be cut into multiple sections longitudinally, and the waste edges are automatically removed by a fan.
Technical parameter | |
Max width of unwinding roll | 1100mm |
Max diameter of unwinding roll | 1400mm |
Max weight of unwinding roll | 1500kg |
Cutting speed | 20-150times/min |
Cutting type | Guillotine knife+ Circular slitting blade |
Cutting length | 1000mm max |
Cutting materials required | 50-180gsm paper |
Precision | ±0.2mm |
Speed regulation control | Frequency converter |
Power input | 415V,50HZ,3Phase, 4 wires |
Total weight | 3200KG |
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
