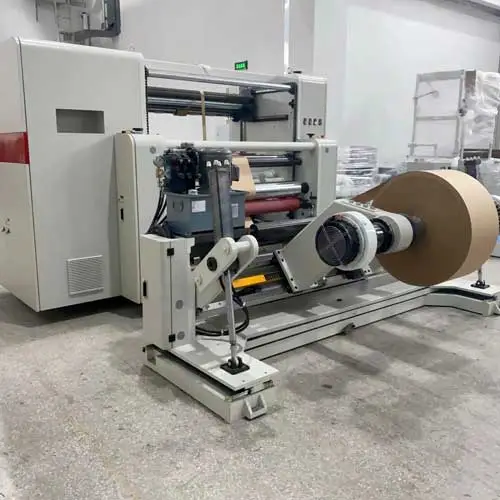

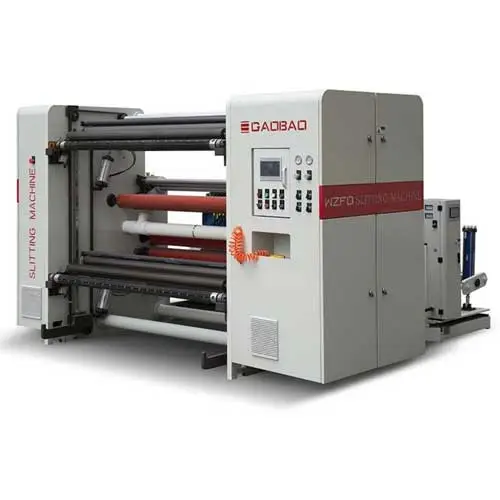

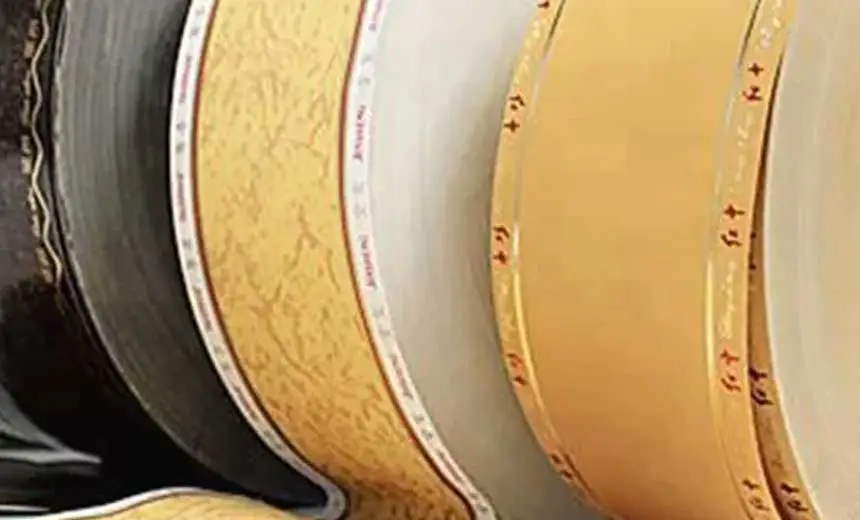

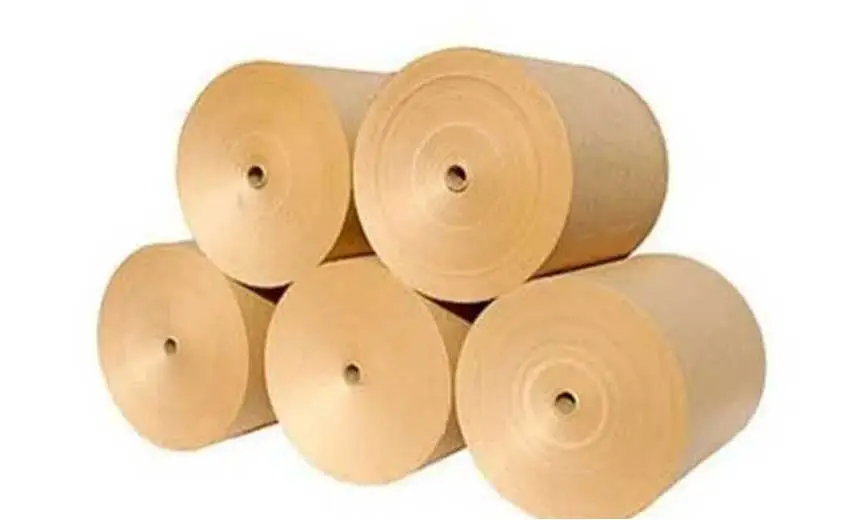

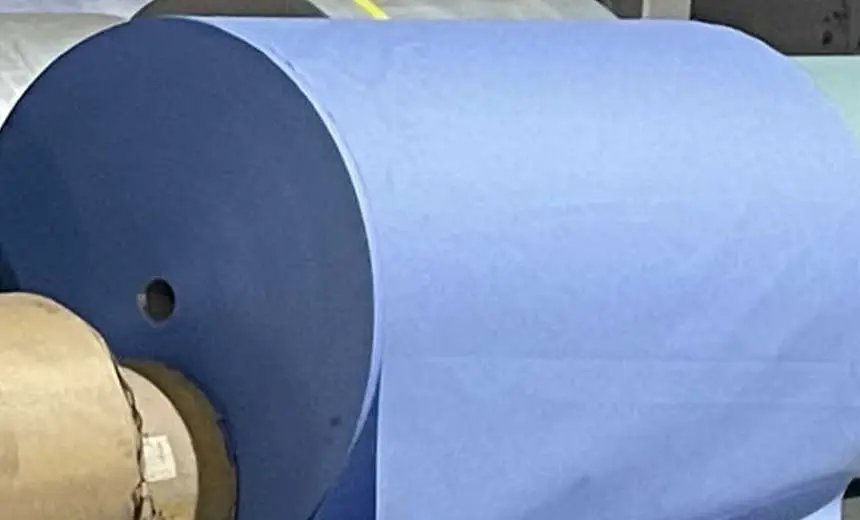

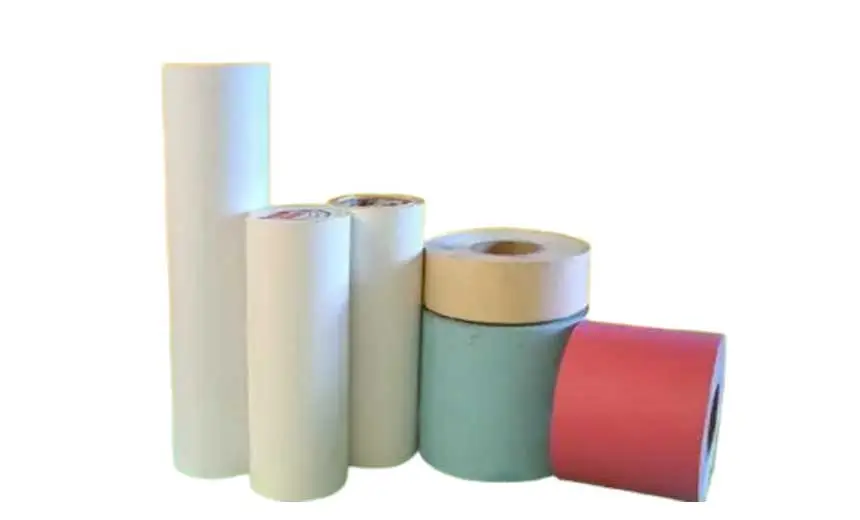

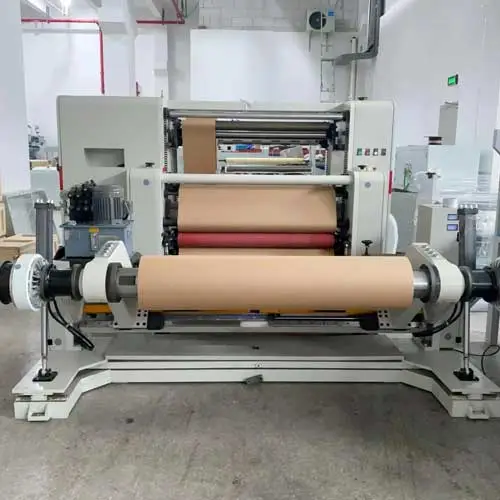

Gaobao's FQA film roll slitting rewinding machine is a high speed paper and film slitter rewinder machine. This film roll slitting rewinding machine adopts Servo motor control and automatic taper tension, central surface rewinding. This film slitter rewinder machine can slit and rewind minimum 30mm width paper/film rolls. Gaobao's FQA film roll slitting rewinding machine can slit many kinds of jumbo roll materials rolls to small rolls, such as adhesive stickers,PVL,PET,Release paper,breathable film, and BOPP. It has the functions of automatic counting meter, automatic alarm, etc. Adopting A and B pneumatic shaft structure for rewinding, easy for loading and unloading. If you want more information about the film slitter rewinder machine price, please do not hesitate to contact the Gaobao paper slitting machine supplier.
Model | FQA-1300 |
Max.Width of unwinding roll | 1300 mm |
Max. Diameter of unwinding roll | φ1400 mm |
speed | ≤350/min |
Precision | ±0.2 mm |
Total Power | 24kw |
Weight | 4000kg |
Dimension(L*W*H) | 3300x3150x1930mm |
Model | FQA-1600 |
Max.Width of unwinding roll | 1600 mm |
Max. Diameter of unwinding roll | φ1400 mm |
speed | ≤350m/min |
Precision | ±0.2 mm |
Total Power | 26kw |
Weight | 4500kg |
Dimension(L*W*H) | 3300x3450x1930mm |
Model | FQA-1800 |
Max.Width of unwinding roll | 1800mm |
Max. Diameter of unwinding roll | φ1400mm |
speed | ≤350m/min |
Precision | ±0.2 mm |
Total Power | 30kw |
Weight | 5500kw |
Dimension(L*W*H) | 3300x3650x1930mm |
