GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE

GBK series model paper roll slitting & rewinding machine is our Leading model of Gaobao(Hightop) Machinery. The jumbo roll slitter rewinder machine is the most automated, fastest, and most widely used of all our jumbo paper roll slitting & rewinding machines. This jumbo roll slitter rewinder machine is equipped with 3 pole main servo motors, a German E+L brand edge positioning correction system, Siemens PLC, and other internationally renowned brands of electrical control systems. The stable running speed reaches 800 meters per minute, which can perfectly slit and rewind 100-500gsm paper jumbo rolls into narrow-width rolls. If you would like more information about jumbo roll slitter rewinder price and cost, please do not hesitate to contact the Gaobao paper slitting machine supplier.

CHARACTERISTICS OF GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE

CHARACTERISTICS OF GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE

  • The jumbo roll slitting machine adopts synchronous control of three servo motors, automatic taper tension structure, and center surface rewinding method;

  • The jumbo rollslitter rewinder machine adopts frequency conversion speed regulation to keep running smoothly during acceleration;

  • Automatic meter counting, alarm, and other functions;

  • The winding adopts A and B differential shaft structures, which is convenient for loading and unloading;

  • Unwinding adopts static analog ultrasonic (Taiwan Puliyuan);

  • Automatic discharge device for round knife slitting waste edge

  • Hydraulic automatic shaftless loading frame structure

SPECIFICATION OF GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE

GBK-1800 GBK-2600

Model

GBK-1800

Max Width of Unwinding

1800mm

Max Diameter of Unwinding

1600mm

Max Diameter of Rewinding

1200mm

Min, Width of Slitting

30mm

Speed of Slitting

800m/min

Grammage

100-400GSM

Power Input

380V 50HZ 3Ph

Dimension

6150*4600/2300mm

Total Weight

12000KGS


Model

GBK-2600

Max Width of Unwinding

2600mm

Max Diameter of Unwinding

1600mm

Max Diameter of Rewinding

1200mm

Min, Width of Slitting

30mm

Speed of Slitting

800m/min

Grammage

100-400GSM

Power Input

380V 50HZ 3Ph

Dimension

6150*5400*2300

Total Weight

15000KGS

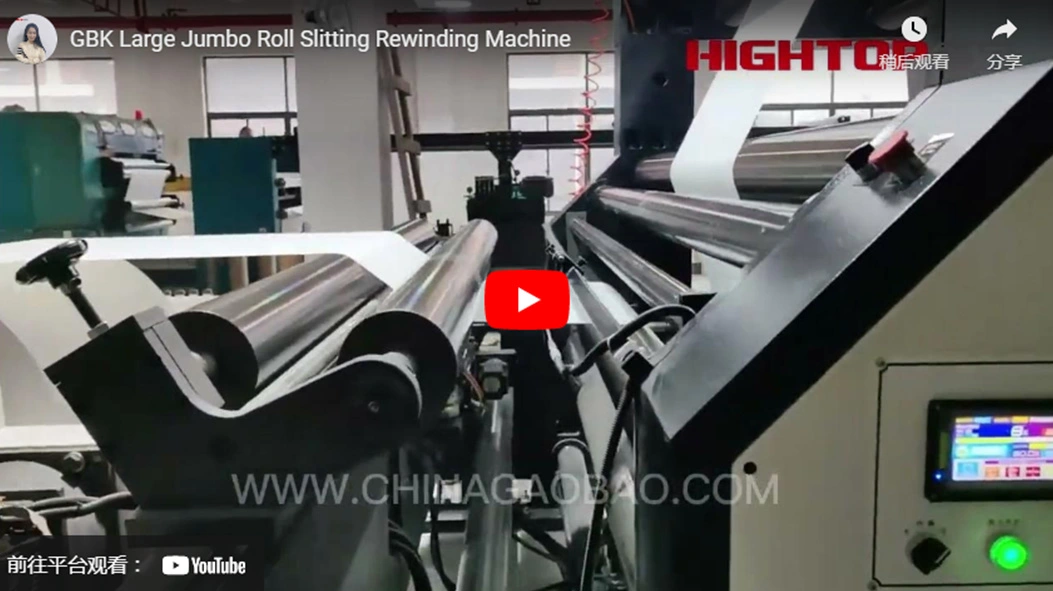

GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE VIDEO

GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTING AND REWINDING MACHINE VIDEO
Products

APPLICATIONS OF GAOBAO LARGE JUMBO PAPER ROLL SLITTER REWINDER MACHINE

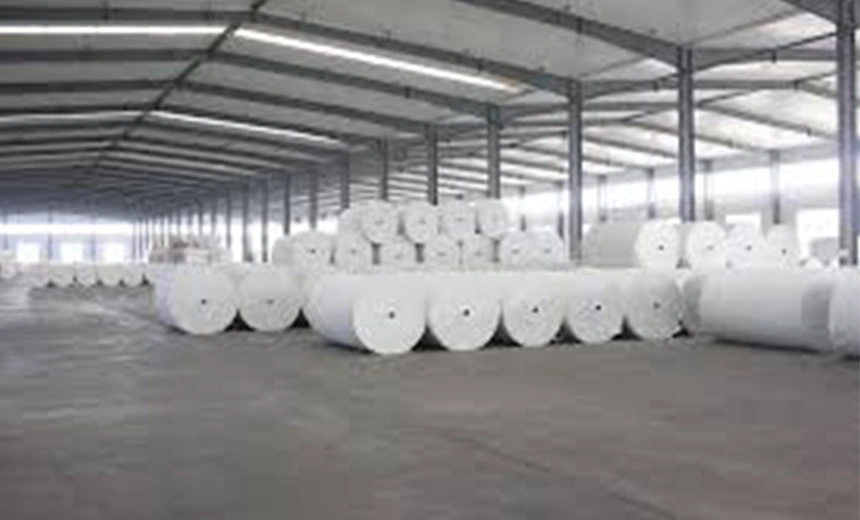

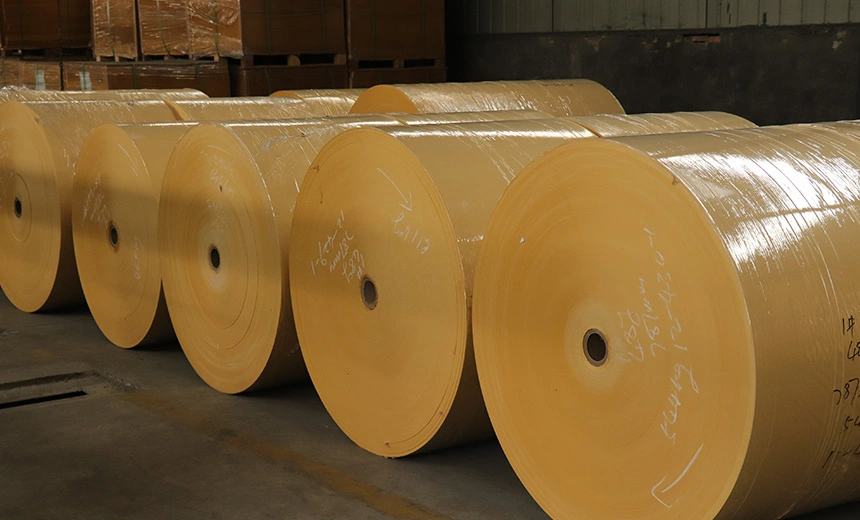

The jumbo roll slitting machine is suitable for cardboard paper jumbo roll to small roll.
paper slitting companies
paper slitting companies
paper slitting equipment
paper slitting equipment

PACKAGING OF GAOBAO GBK LARGE JUMBO PAPER ROLL SLITTER REWINDER MACHINE

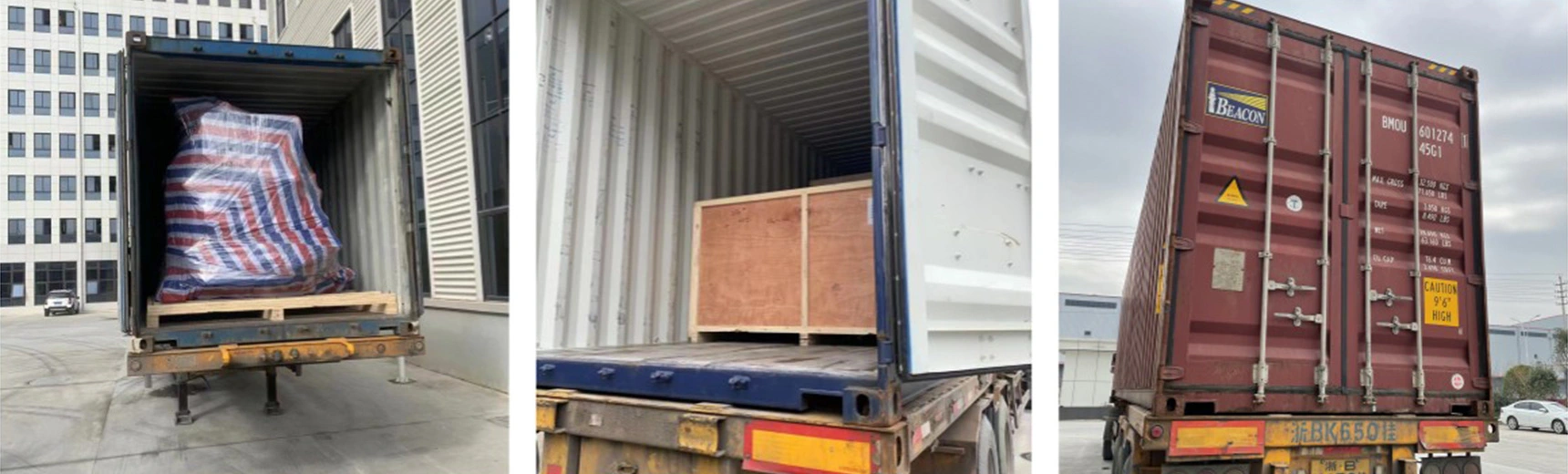

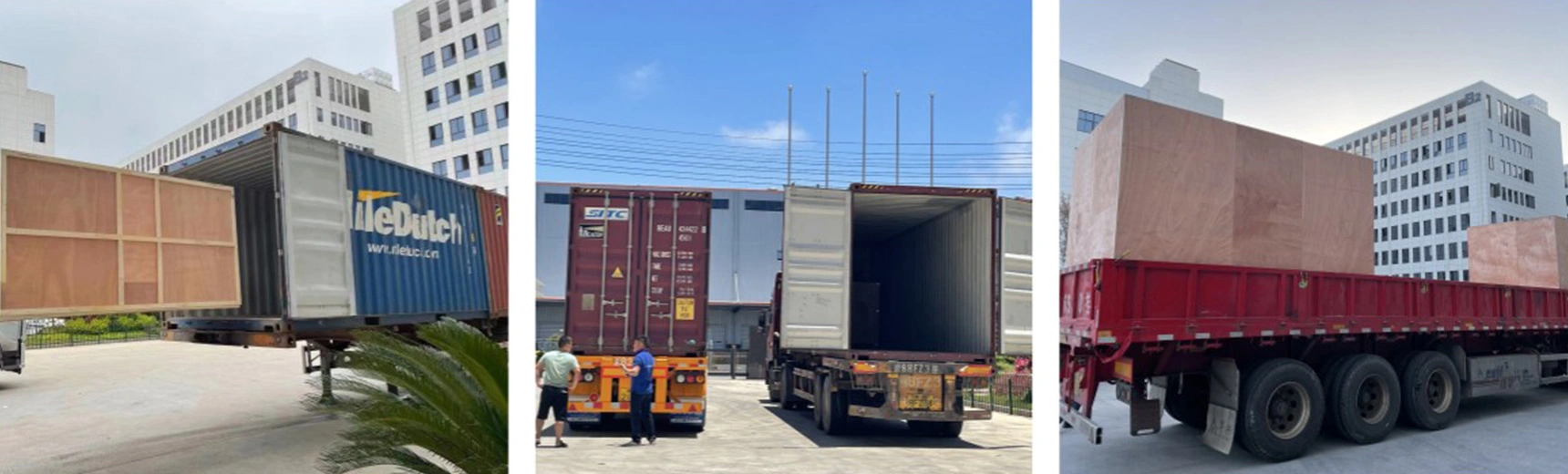

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.
paper straw slitting machine
paper straw slitting machine
roll thermal paper slitting rewinder
roll thermal paper slitting rewinder
slitting and rewinding machine manufacturers
slitting and rewinding machine manufacturers

Exhibition of Gaobao's Large Jumbo Paper Roll Slitter Rewinder Machines

thermal paper cutting machine
thermal paper cutting machine
thermal paper slitter
thermal paper slitter
