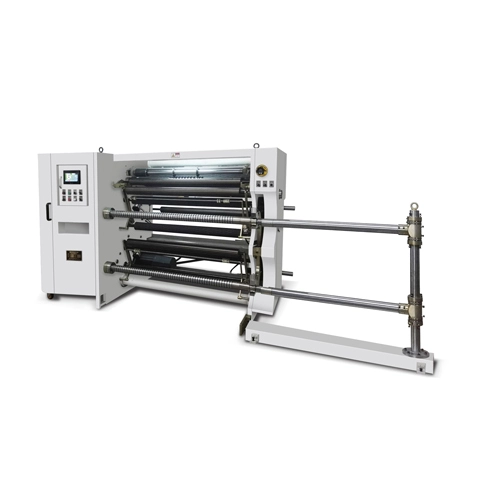

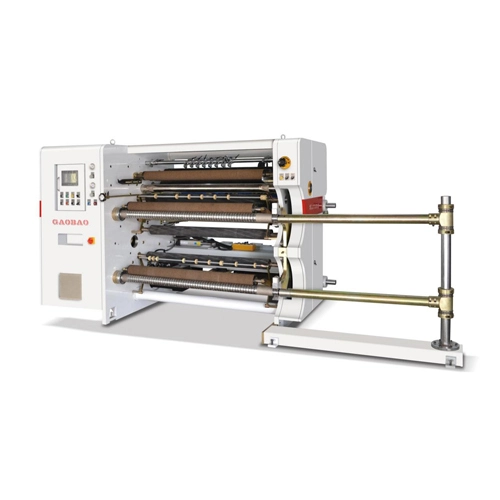

ZSFQ High Speed Slitting and Rewinding Machine

Gaobao's ZSFQ high speed slitting and rewinding machine is a special design for slitting and rewinding materials of uneven thickness, like PET, BOPP, CPP, PE, PVC film, or paper. With three individual motors synchronous control and a high rack structure, this high-speed slitting and rewinding machine can fulfill the customers who have the high demands for clean and precision materials.


ZSFQ high speed slitting and rewinding machine can also cut the wide paper, mica tape or film into several narrow materials, which is commonly used in paper-making industries, film, printing, and packaging industrial.  If you would like more information about high speed slitting and rewinding machine price and cost, please do not hesitate to contact Gaobao paper slitting machine supplier.


CHARACTERISTICS OF GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE

CHARACTERISTICS OF GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE

  • Central winding mode, flat winding surface.

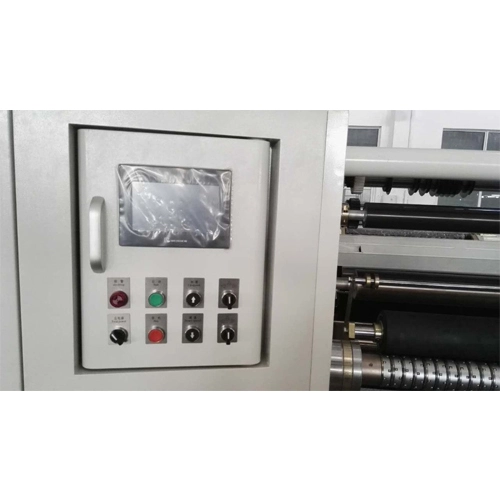

  • The main engine adopts frequency conversion speed regulation to maintain the accelerated and stable operation.

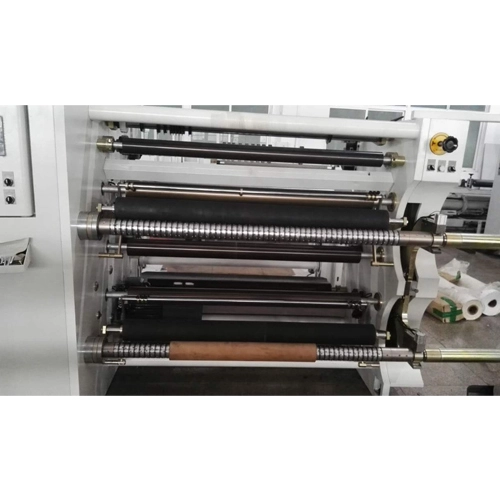

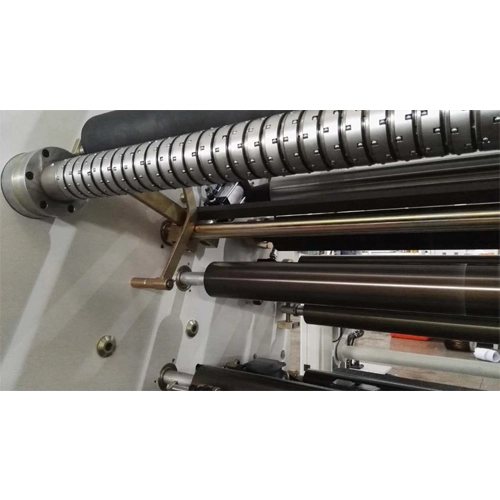

  • The winding adopts the structure of upper and lower a and B air expansion shafts.

  • The unwinding adopts the photoelectric automatic deviation correction system, so that the irregular materials can be cut normally.

  • The high speed slitting and rewinding machine shell adopts frosting and painting technology, and the color can be customized.

  • Be equipped with rotary shear slitting knives with wool felt and high power trim edge suction fan.

SPECIFICATION OF GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE

ZSFQ-1300C ZSFQ-1600C

Model

ZSFQ-1300C

Max. Width of unwinding

1300mm

Max. diameter of unwinding

1400mm

Min. Width of slitting

30mm

Max. Diameter of rewinding

600mm

Speed of slitting

80-400m/min

Total Power

21kw

Power supply

380V/50hz

Overall dimension

2050*3000*1720(mm)

Weight

3500kg

Collector frame Overall dimension

1530*1250mm


Model

ZSFQ-1600C

Max. Width of unwinding

1600mm

Max. diameter of unwinding

1400mm

Min. Width of slitting

30mm

Max. Diameter of rewinding

600mm

Speed of slitting

80-400m/min

Total Power

27kw

Power supply

380V/50hz

Overall dimension

2050*3300*1720 (mm)

Weight

4000kg

Collector frame Overall dimension

1530*1250mm

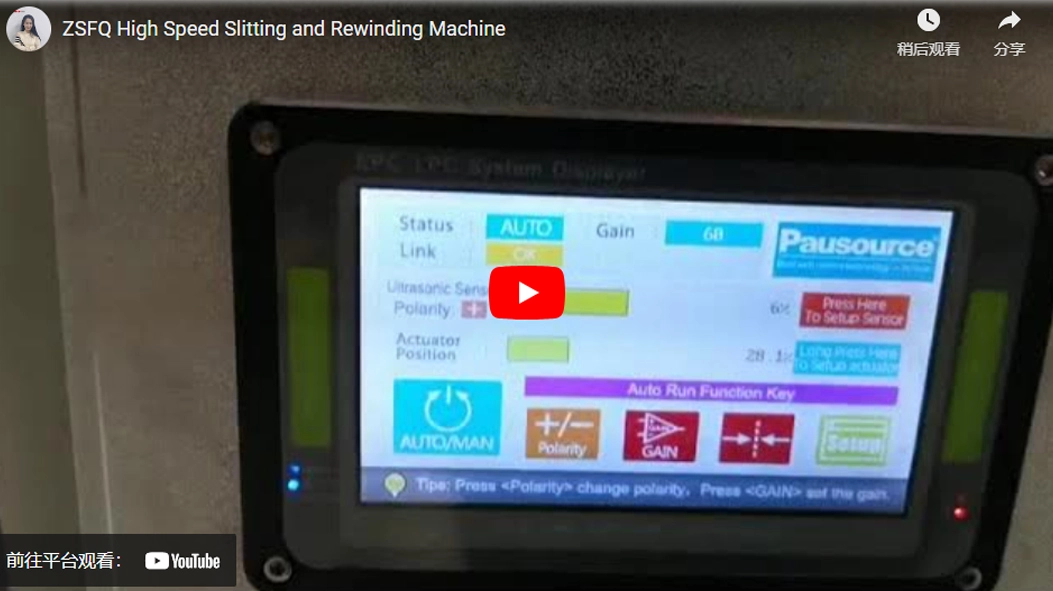

GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE VIDEO

GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE VIDEO

APPLICATIONS OF GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE

Gaobao's ZSFQ high speed slitting and rewinding machine is suitable for many kinds of jumbo roll materials, such as adhesive stickers/PVC/PET/Release paper/breathable film/Pearlized BOPP/wall paper.
corrugated paper slitting machine
corrugated paper slitting machine
paper reel slitting machine
paper reel slitting machine

PACKAGING OF GAOBAO ZSFQ HIGH SPEED SLITTING AND REWINDING MACHINE

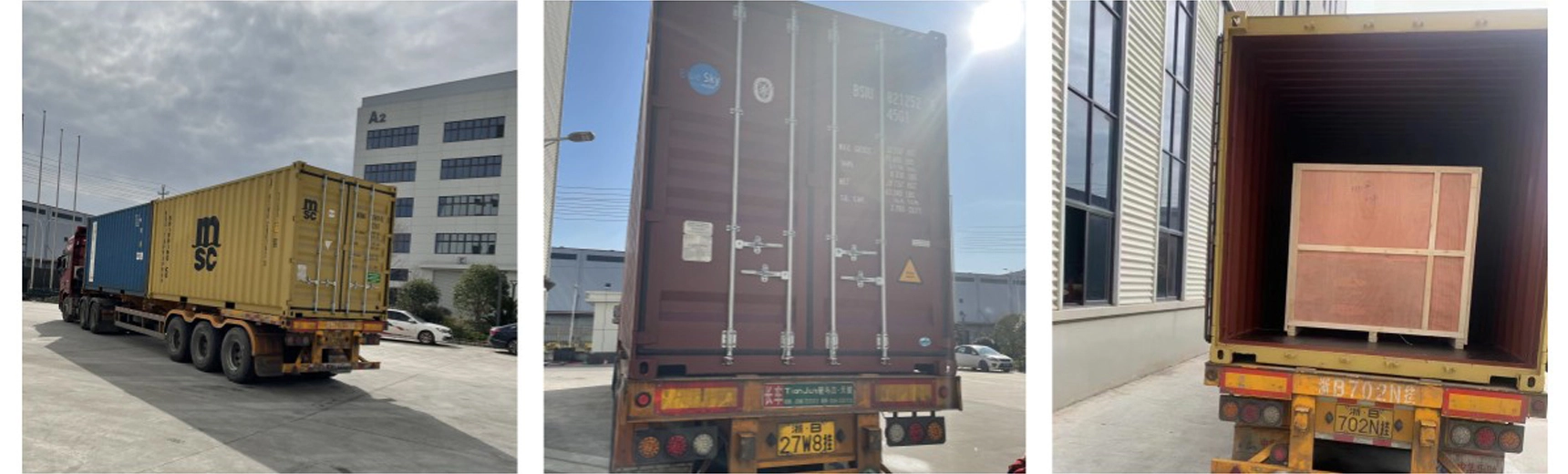

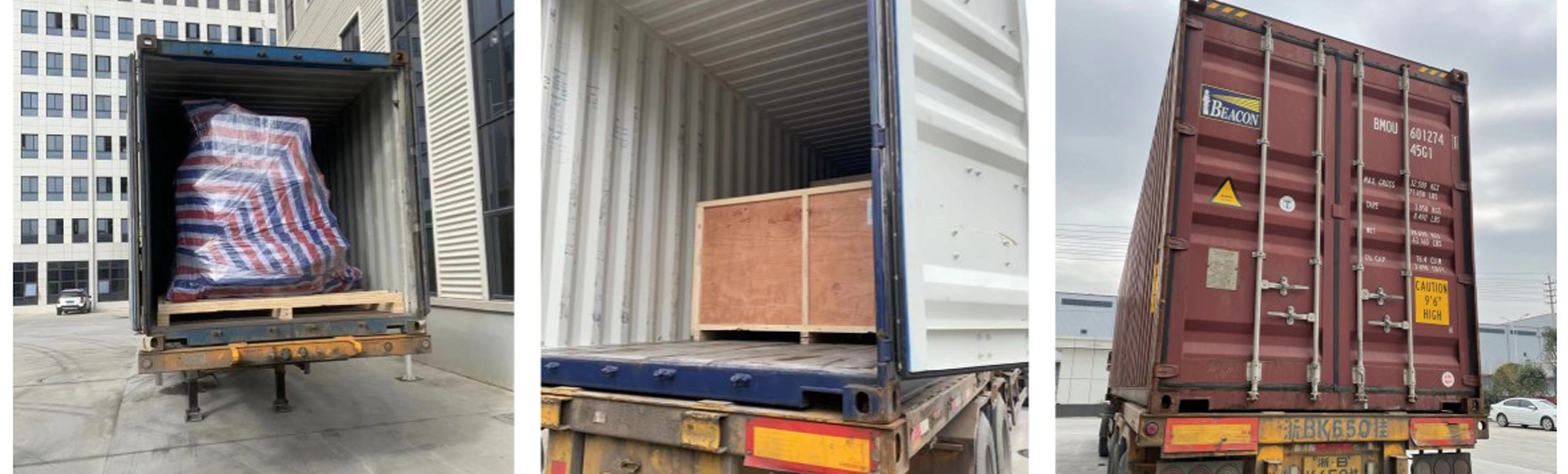

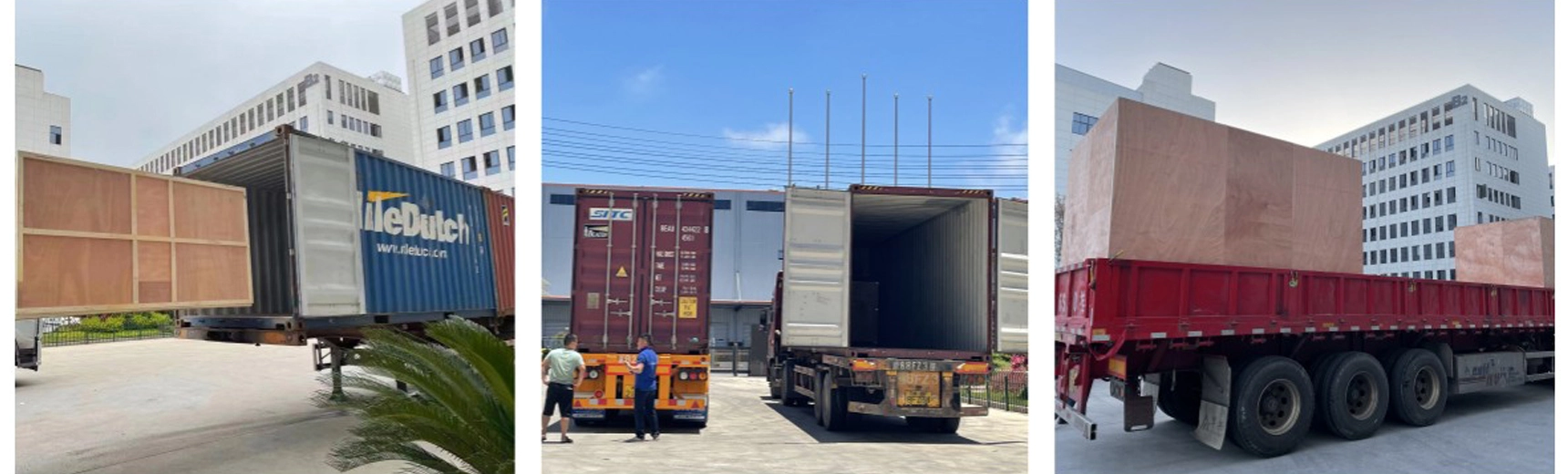

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.
board sheet cutting machine
board sheet cutting machine
acp sheet cutting machine
acp sheet cutting machine
sheet cutting shearing machine
sheet cutting shearing machine

Exhibition of Gaobao's Converting Machines
