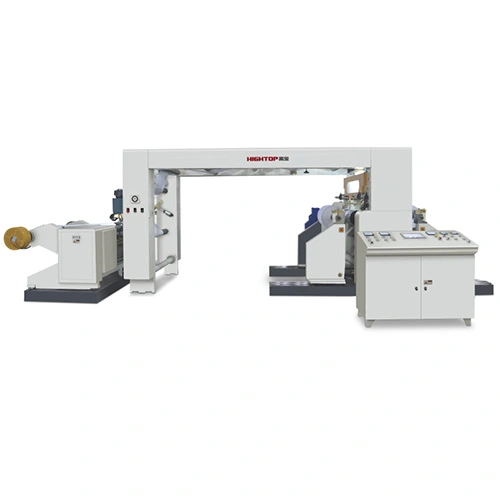

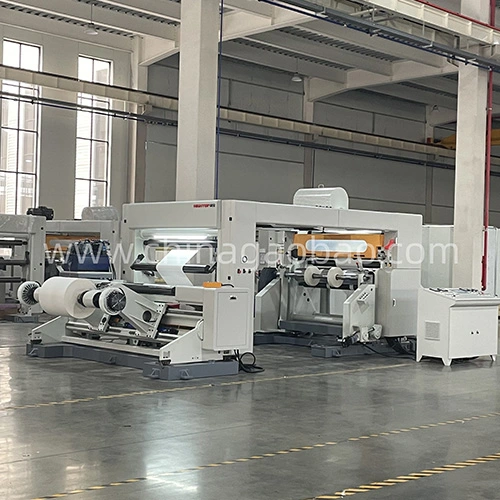

KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

The KFQ model paper jumbo rolls to rolls slitting rewinding machine is a center&surface rewinding type slitter machine. It is mainly used to slit the jumbo paper rolls to small width rolls. It is widely using in paper, aluminum foil, nonwoven, plastic film, self - adhesive labels products manufacturing industry.

Characteristics of KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

Characteristics of KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

  • Germany brand PLC with intelligent control system.Big size operating touch screen. Control&Operating Table.

  • Three sets servo motors stable drive machine in a high speed level.

  • Full automatic tension control system.

  • The frame type mechanical structure let the machine running more stable.

  • High precision web edge position adjustment system(EPC).

  • Automatic loading and unloading paper rolls, saving time and labor.

  • The rewinding paper rolls surface is smooth and flat.

  • Automatic counting rewinding meters.

Specification of KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

KFQ-1300 KFQ-1600 KFQ-1800 KFQ-2000

Model

KFQ-1300

Max. Width of unwinding

1300mm

Max. diameter of unwinding

1700mm

Min. Width of slitting

40mm

Max. Diameter of rewinding

1300mm

Speed of slitting

≤400m/min

Total Power

56kw

Power supply

380V/50hz

Overall dimension

8500*3500*2700(mm)

Weight

13000kg


Model

KFQ-1600

Max. Width of unwinding

1600mm

Max. diameter of unwinding

1700mm

Min. Width of slitting

40mm

Max. Diameter of rewinding

1300mm

Speed of slitting

≤400m/min

Total Power

56kw

Power supply

380V/50hz

Overall dimension

8500*3800*2700(mm)

Weight

14000kg


Model

KFQ-1800

Max. Width of unwinding

1800mm

Max. diameter of unwinding

1700mm

Min. Width of slitting

40mm

Max. Diameter of rewinding

1300mm

Speed of slitting

≤400m/min

Total Power

56kw

Power supply

380V/50hz

Overall dimension

8500*4100*2700(mm)

Weight

15000kg


Model

KFQ-2000

Max. Width of unwinding

2000mm

Max. diameter of unwinding

1700mm

Min. Width of slitting

40mm

Max. Diameter of rewinding

1300mm

Speed of slitting

≤400m/min

Total Power

56kw

Power supply

380V/50hz

Overall dimension

8500*4500*2700(mm)

Weight

17000kg

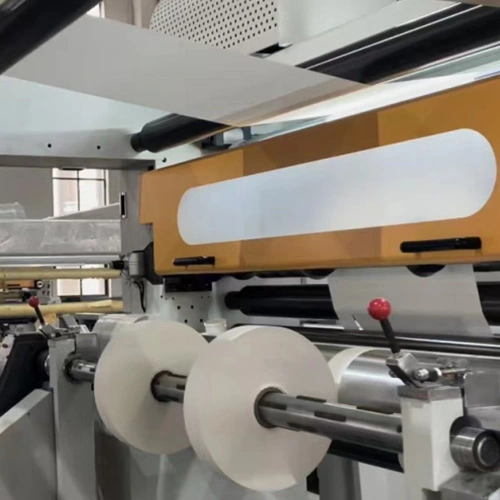

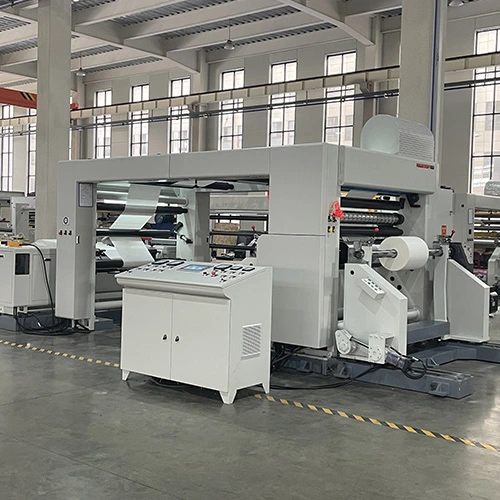

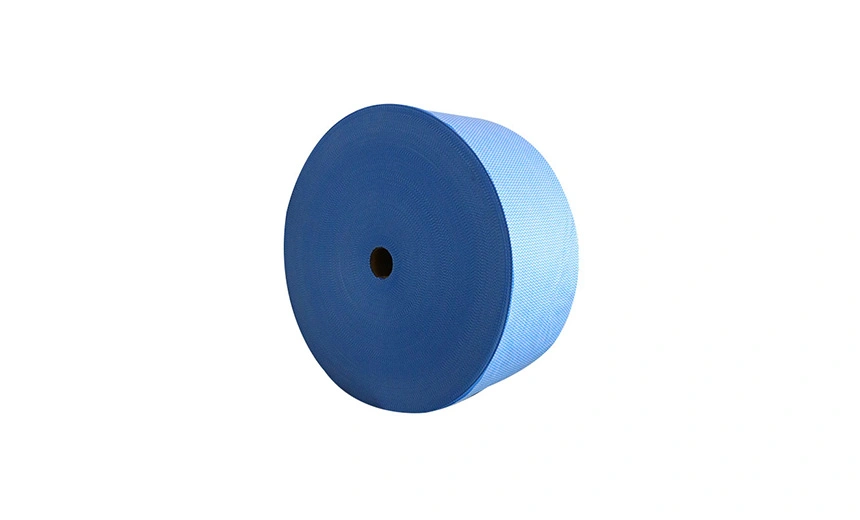

Applications of KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

non woven slitting machine price
non woven slitting machine price

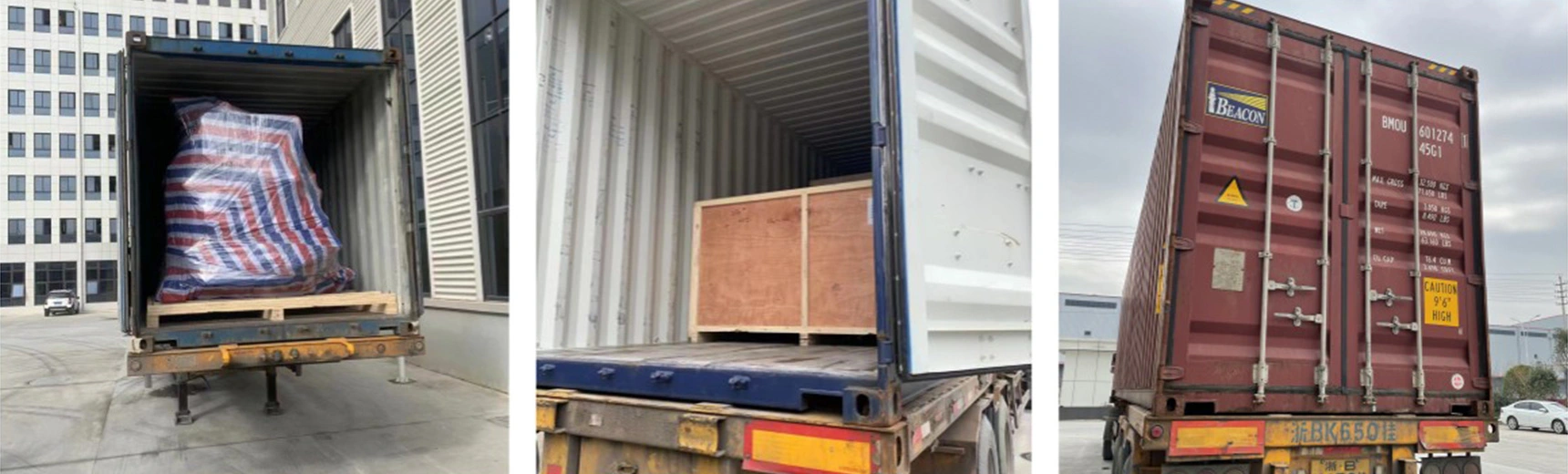

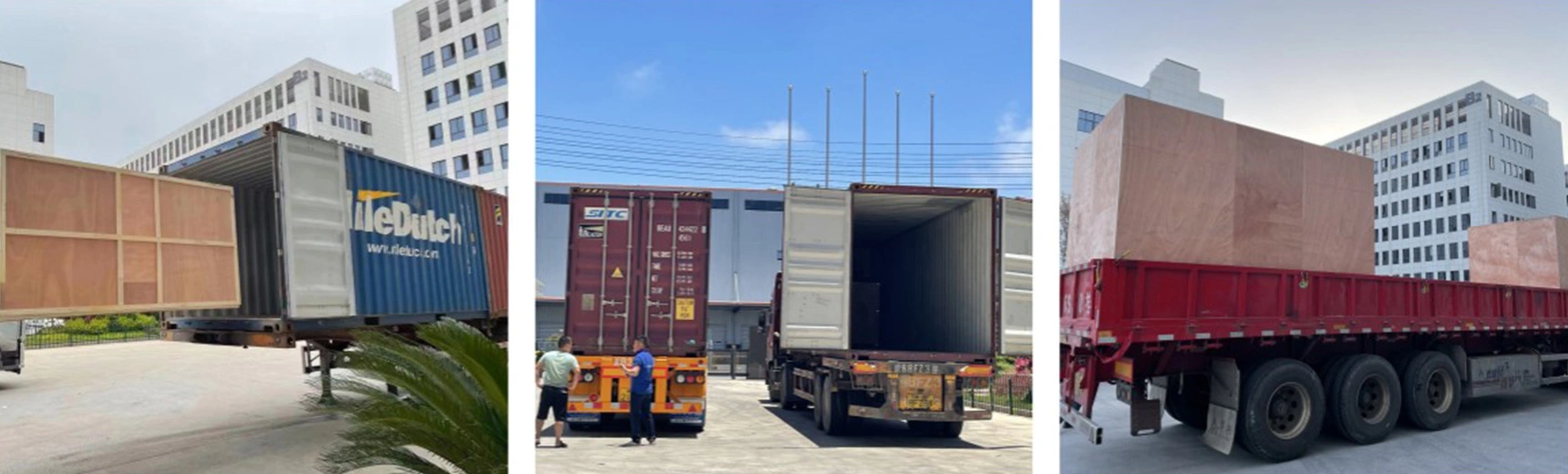

Packaging of KFQ Automatic 400 Meters Per Minute Roll to Rolls Nonwoven Slitting Rewinding Machine Jumbo Roll Slitting Machine

center slitter rewinder
center slitter rewinder
surface winding slitting machine
surface winding slitting machine
slitting and rewinding equipment
slitting and rewinding equipment

Exhibition of Hightop's Converting Machines

center surface slitter rewinder
center surface slitter rewinder
surface slitter rewinder
surface slitter rewinder
