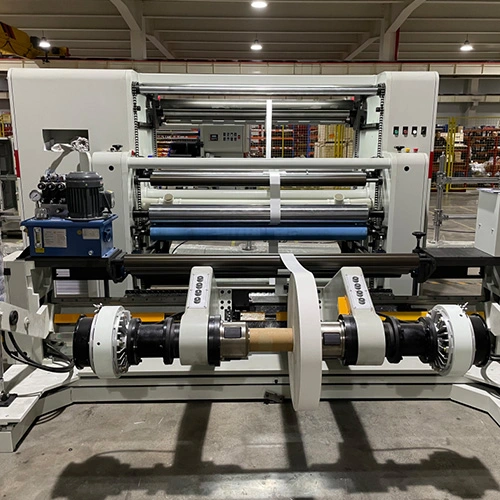

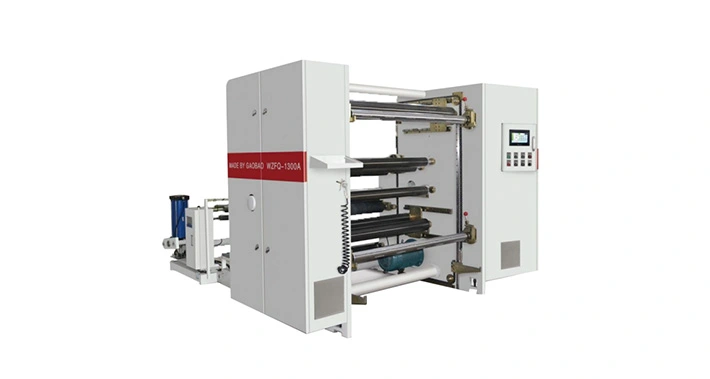

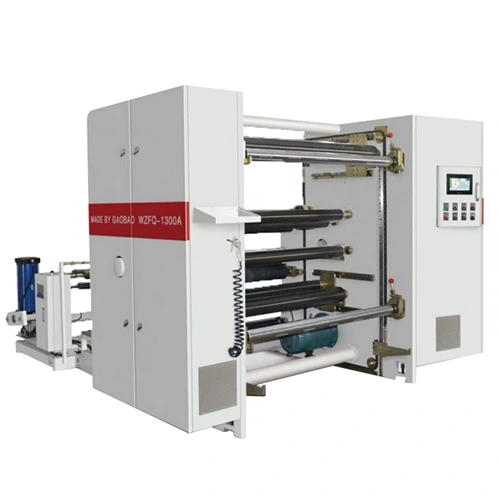

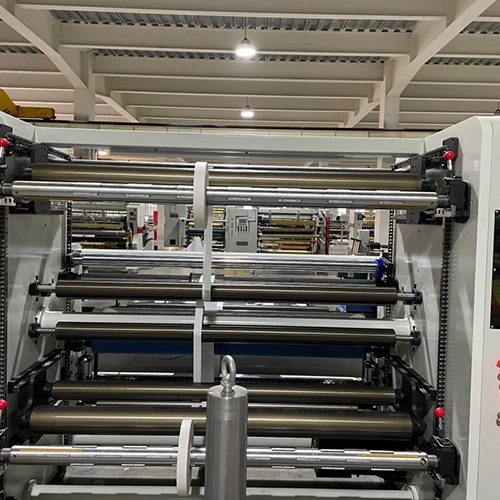

WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

The WZFQ-A model paper jumbo rolls to narrow rolls slitting rewinding machine is a center rewinding type slitter machine. It is mainly used to slit the jumbo paper rolls to narrow rolls. It is widely used in paper bag manufacturing, paper cup manufacturing, paper tube manufacturing, and other paper product manufacturing industries.

Characteristics of WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

Characteristics of WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

  • Germany brand PLC with the intelligent control system. Big-size operating touch screen.

  • Three sets of servo motors stable drive the machine at a high-speed level.

  • Full automatic tension control system.

  • High-precision web edge position adjustment system(EPC).

  • Automatic loading and unloading of paper rolls, saving time and labor.

  • The rewinding paper roll's surface is smooth and flat.

  • Automatic counting rewinding meters.

Specification of WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

WZFQ1300 WZFQ1600 WZFQ1800

Model

WZFQ1300

Max mechanical speed

400m/min

Material thickness

30-500gsm

Max slitting speed

350m/min

Max roll width

1300mm

Min slitting width

30mm

Max unwinding diameter

1400mm

Max rewinding diameter

1100mm

Voltage

380V 50HZ or Customized

Power

22kw

Weight

3400kg

Dimension(LxWxH)(mm)

4500*3100*1900


Model

WZFQ1600

Max mechanical speed

400m/min

Material thickness

30-500gsm

Max slitting speed

350m/min

Max roll width

1600mm

Min slitting width

30mm

Max unwinding diameter

1400mm

Max rewinding diameter

1100mm

Voltage

380V 50HZ or Customized

Power

26kw

Weight

3800kg

Dimension(LxWxH)(mm)

4500*3400*1900



Model

WZFQ1800

Max mechanical speed

400m/min

Material thickness

30-500gsm

Max slitting speed

350m/min

Max roll width

1800mm

Min slitting width

30mm

Max unwinding diameter

1400mm

Max rewinding diameter

1100mm

Voltage

380V 50HZ or Customized

Power

35kw

Weight

4200kg

Dimension(LxWxH)(mm)

4500*3600*1900mm

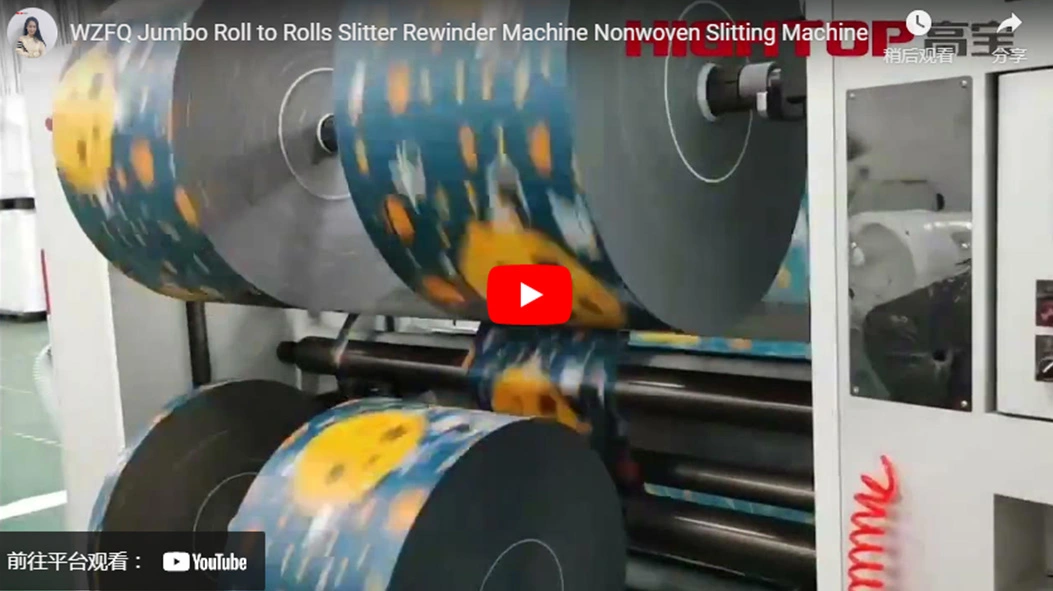

WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine Video

WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine Video

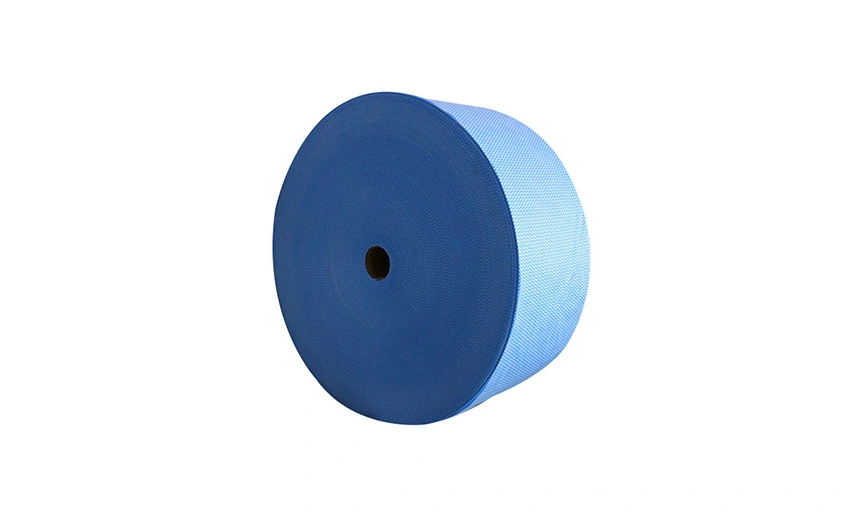

Applications of WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

non woven slitting machine price
non woven slitting machine price

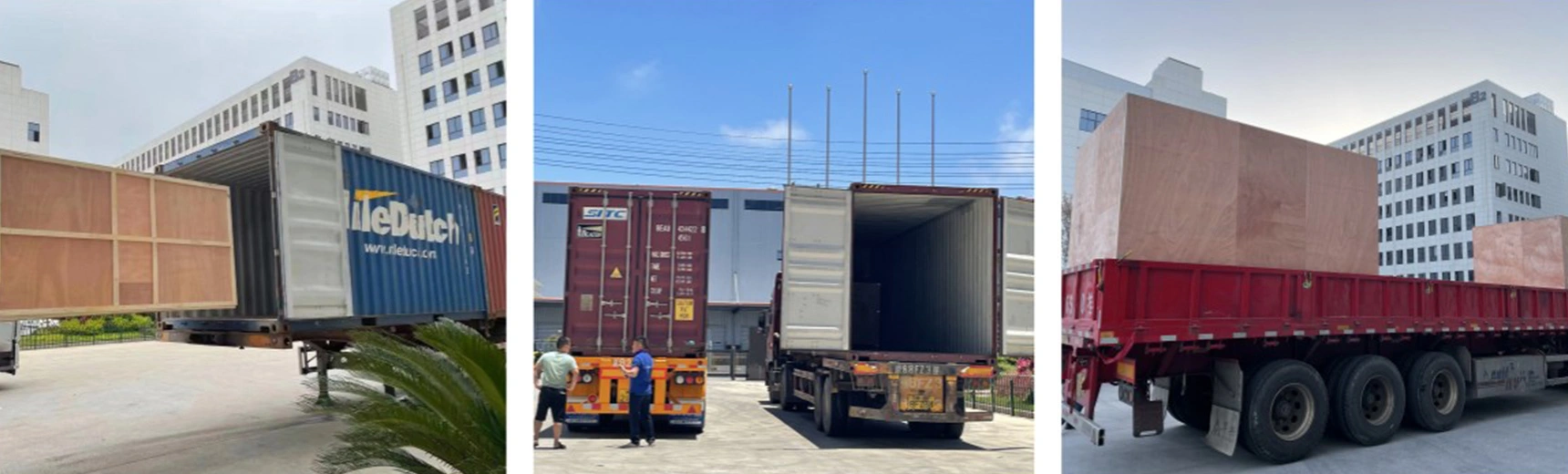

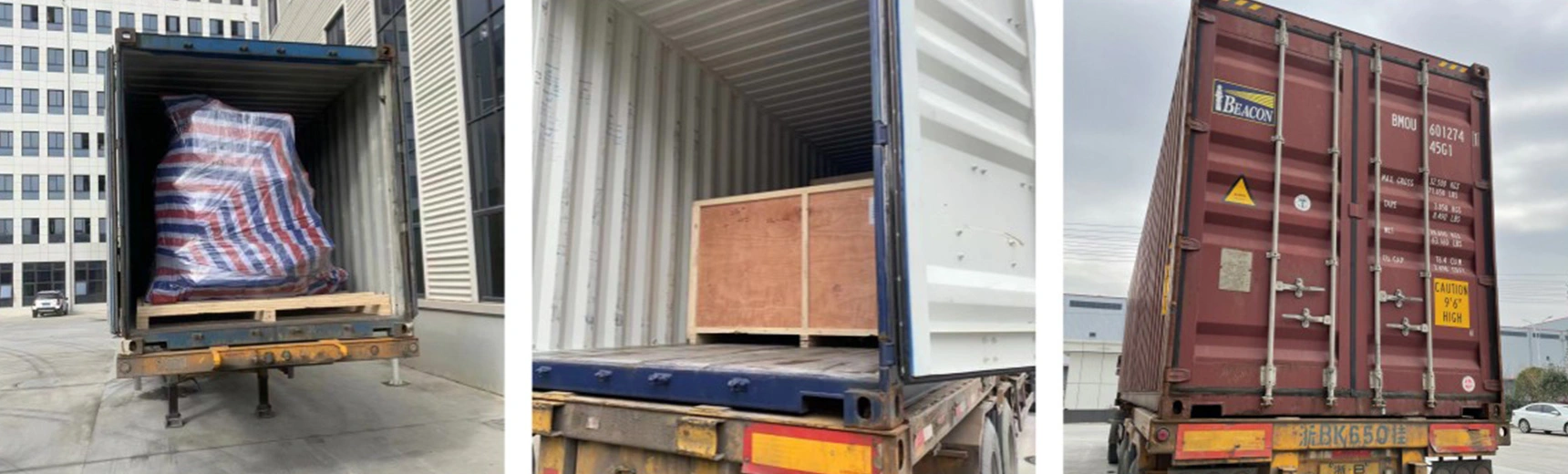

Packaging of WZFQ Jumbo Roll to Rolls Slitter Rewinder Machine Nonwoven Slitting Machine

slitting and rewinding machine
slitting and rewinding machine
slitter rewinder
slitter rewinder
surface winding slitting machine
surface winding slitting machine

Exhibition of Hightop's Converting Machines

center slitter rewinder
center slitter rewinder
slitting and rewinding equipment
slitting and rewinding equipment
